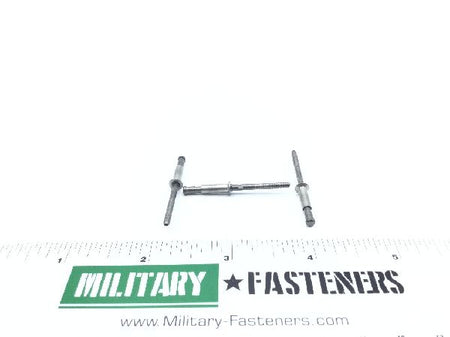

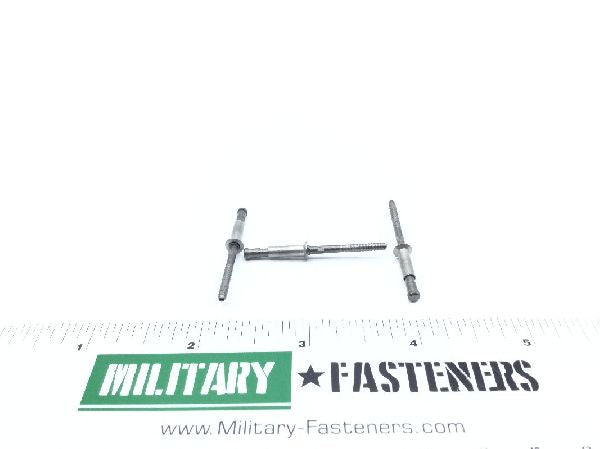

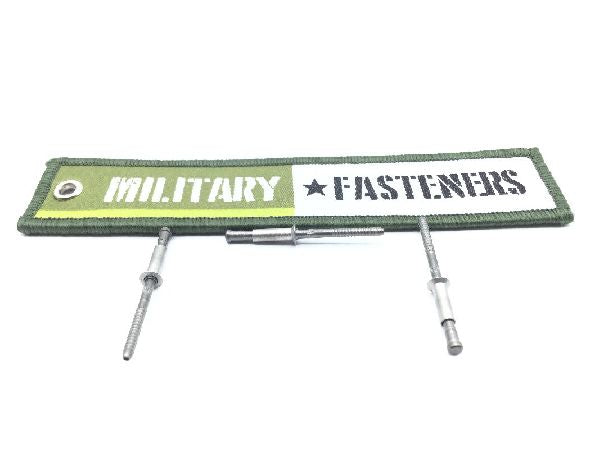

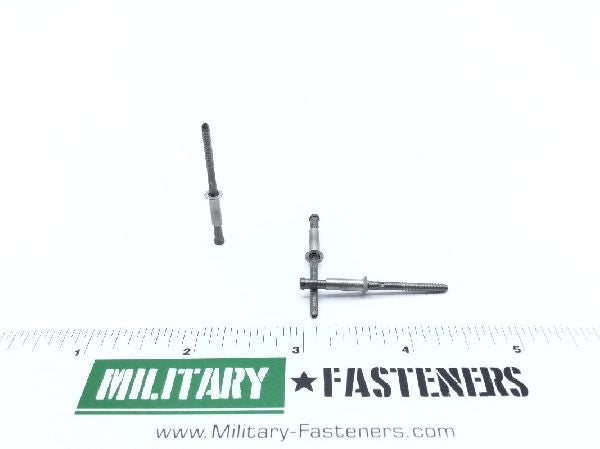

NAS1921C04S05 Blind Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Countersink Angle: Between 99 degrees and 101 degrees
Expansion Device: Serrated stem-type w
Grip Length: Between 0.251 inches and 0.312 inches
Head Major Diameter: Between 0.221 inches and 0.229 inches
Material Specification: Ams 5737 assn standard single material response
Shank Diameter: Between 0.124 inches and 0.128 inches
Shank Style: Self-plugging mechanically locked stem
Special Features: Color code yellow on spindle non-shifting installation tools single action
Specification Data: 80205-nas1921 professional/industrial association standard
