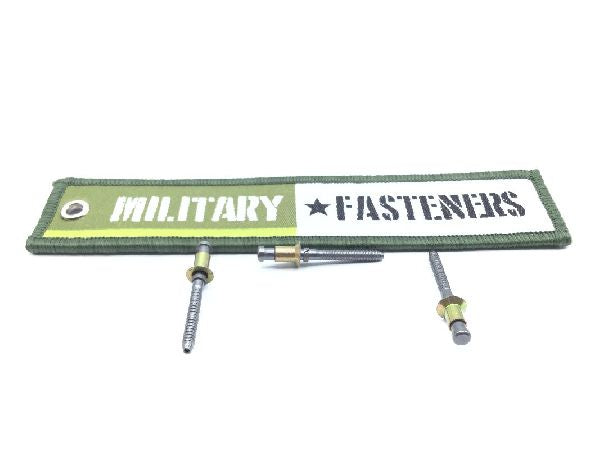

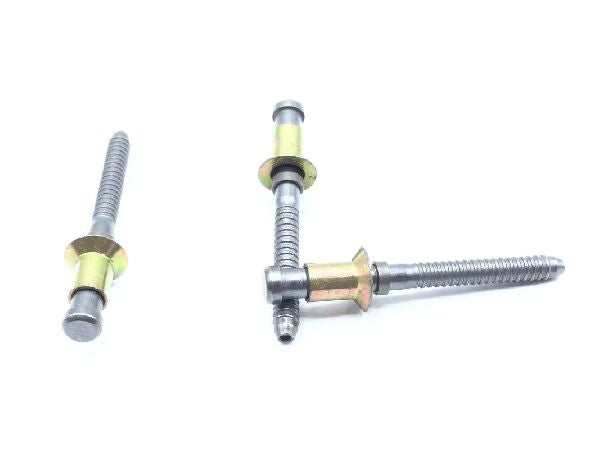

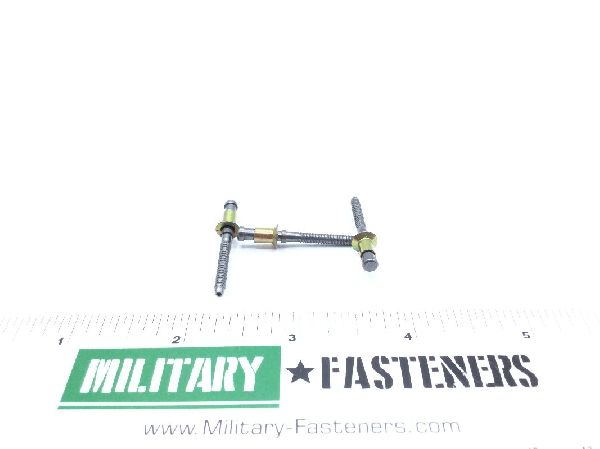

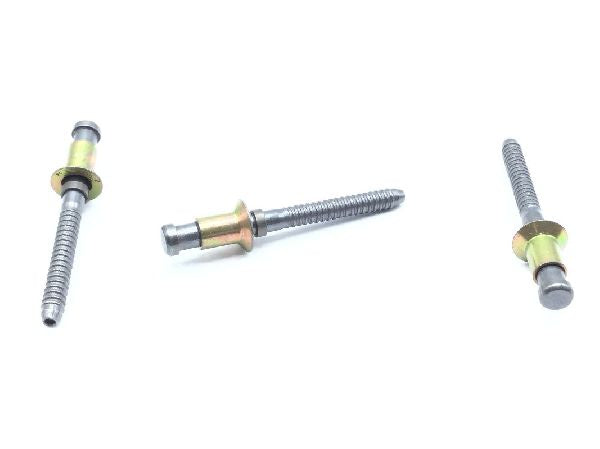

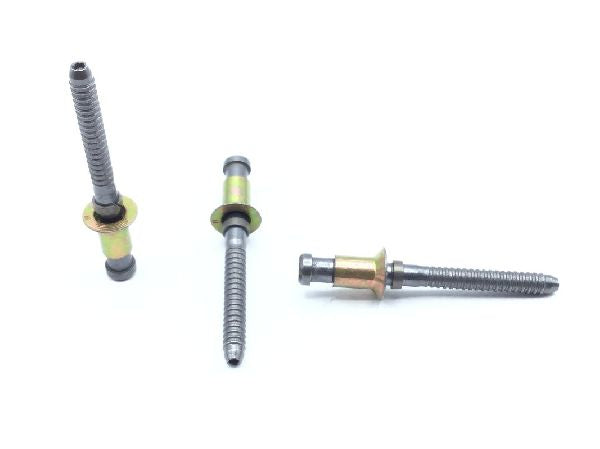

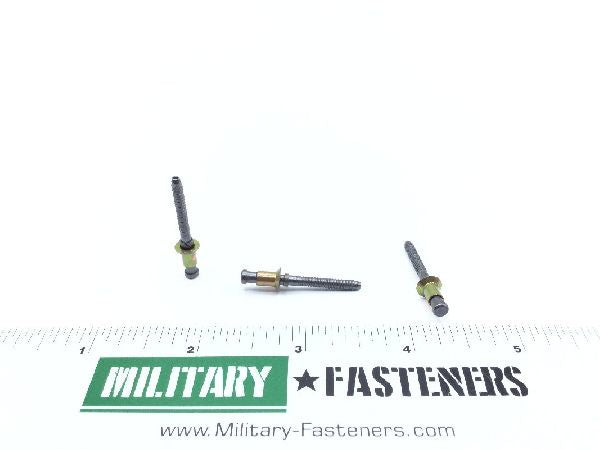

NAS1921M05-02W Blind Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $6.93

Units per Pack 10

Price per Pack $69.30

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $69.30

Add item to quote

Head Style

Flush (flat) countersunk

Material

Nickel alloy 400 body

Countersink Angle: Between 98.5 degrees and 101.5 degrees
Expansion Device: Serrated stem-type w
Fastener Length: 0.263 inches
Grip Length: Between 0.080 inches and 0.125 inches
Head Major Diameter: Between 0.282 inches and 0.290 inches
Material Specification: Qq-n-281 form 7 federal specification single material response body
Shank Diameter: Between 0.155 inches and 0.159 inches
Shank Style: Self-plugging mechanically locked stem
Shear Strength: 2260 single pounds per square inch
Specification Data: 80205-nas1921 professional/industrial association standard
