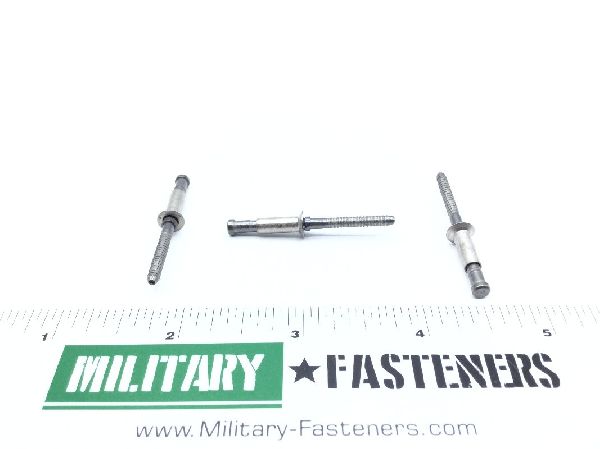

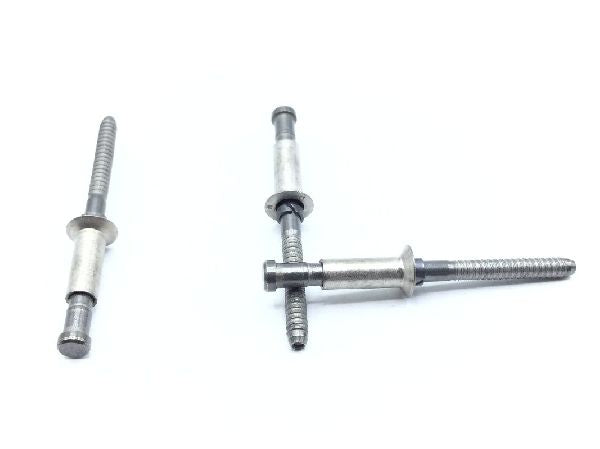

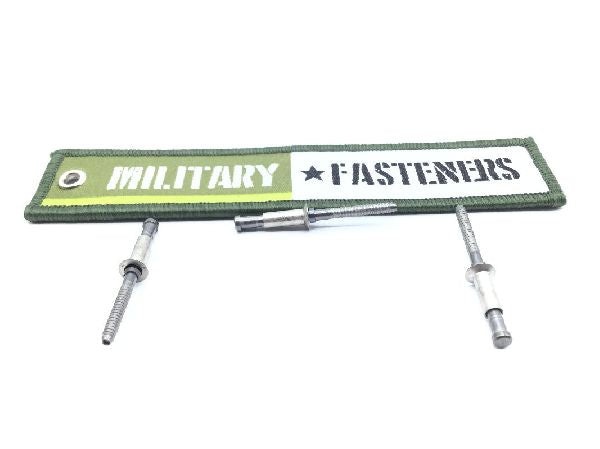

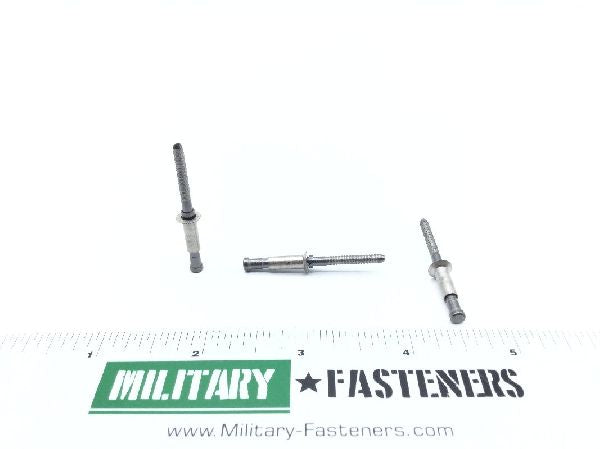

NAS1921M05S05 Blind Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Iron alloy 660 stem

Surface Treatment

Qq-p-35 federal specification single treatment response stem

Countersink Angle: Between 98.5 degrees and 101.5 degrees
Expansion Device: Serrated stem-type w
Fastener Length: 0.461 inches
Grip Length: Between 0.251 inches and 0.312 inches
Head Major Diameter: 0.29 inches
Material Specification: Ams 5731 assn standard single material response stem
Shank Diameter: Between 0.155 inches and 0.159 inches
Shank Style: Self-plugging mechanically locked stem
Special Features: Single action installation; color yellow on spindle
Specification Data: 80205-nas1921 professional/industrial association standard
