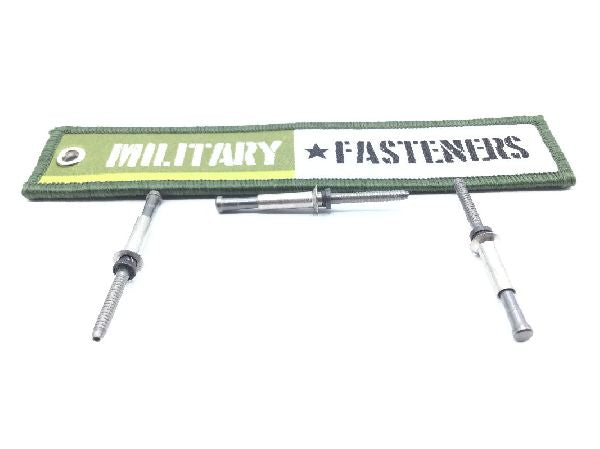

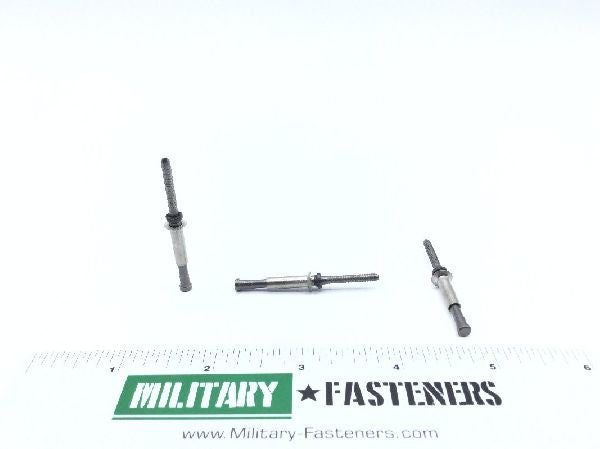

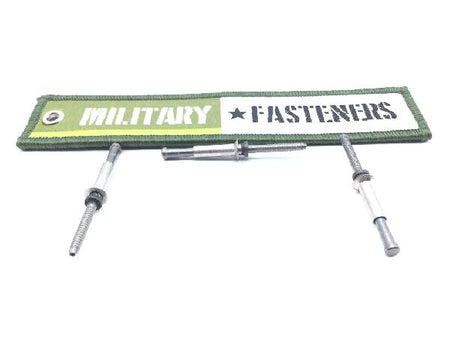

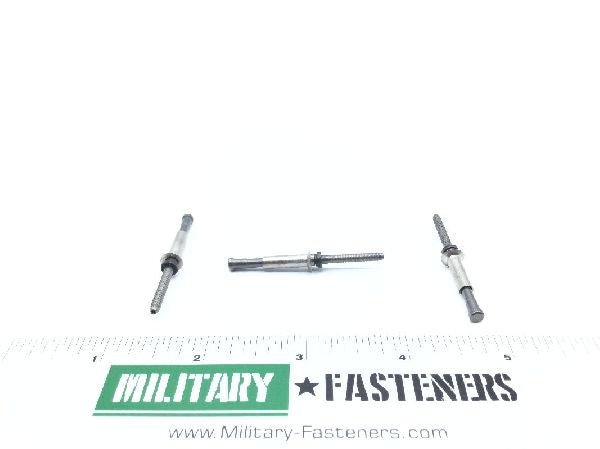

NAS1921M05S07U Blind Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $5.47

Units per Pack 10

Price per Pack $54.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $54.70

Add item to quote

Head Style

Flush (flat) countersunk

Material

Stainless steel stem

Surface Treatment

Class 3 federal specification single treatment response sleeve or nas4006 assn standard single treatment response sleeve qq-p-416 ty ii

Countersink Angle: Between 98.5 degrees and 101.5 degrees
End Application: Rq-4a
Expansion Device: Serrated stem-type w
Grip Length: Between 0.376 inches and 0.437 inches
Head Major Diameter: Between 0.282 inches and 0.290 inches
Material Specification: Qq-n-281 federal specification single material response sleeve
Shank Diameter: Between 0.155 inches and 0.159 inches
Shank Style: Self-plugging mechanically locked stem
Special Features: Utilizes drive anvil washer;requires single acxtion non-shifting installation tool
