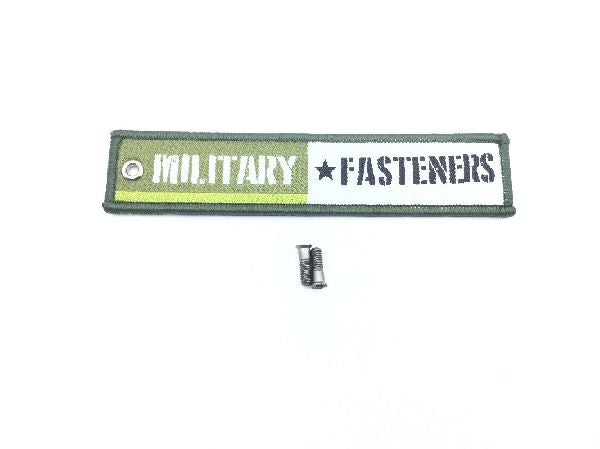

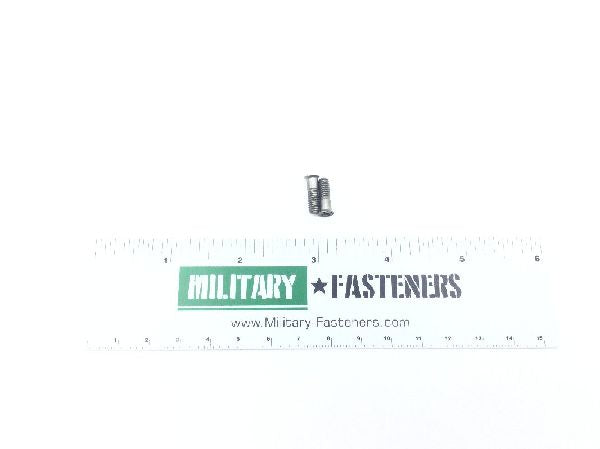

NAS1992T3T Close Tolerance Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Titanium alloy

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: 0.526 inches
Grip Diameter: Between 0.162 inches and 0.163 inches
Grip Length: 0.188 inches
Internal Drive Style: Offset cruciform (torque set)
Material Specification: Ams 4971 assn standard single material response
Specification Data: 80205-nas1992 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.338 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.253 inches and 0.261 inches
