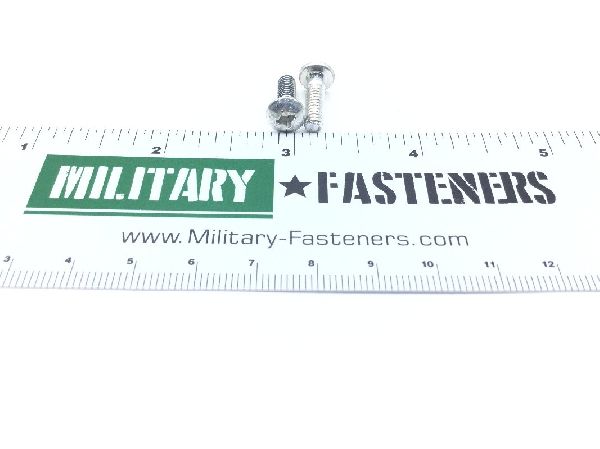

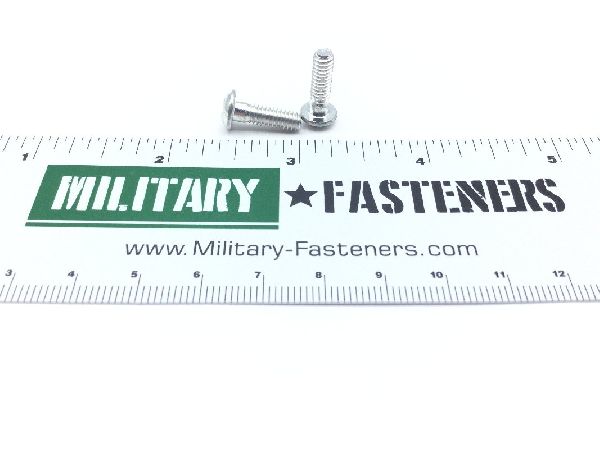

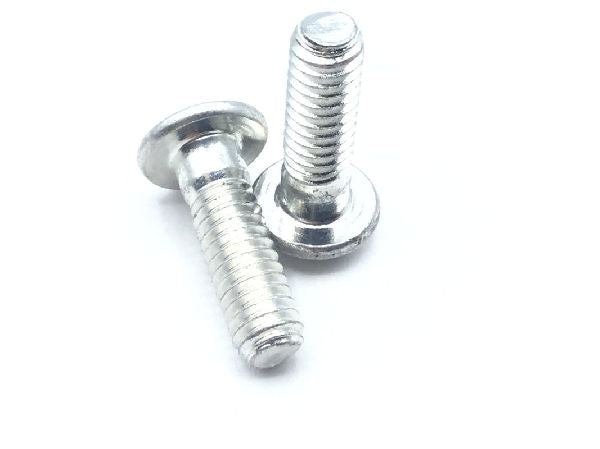

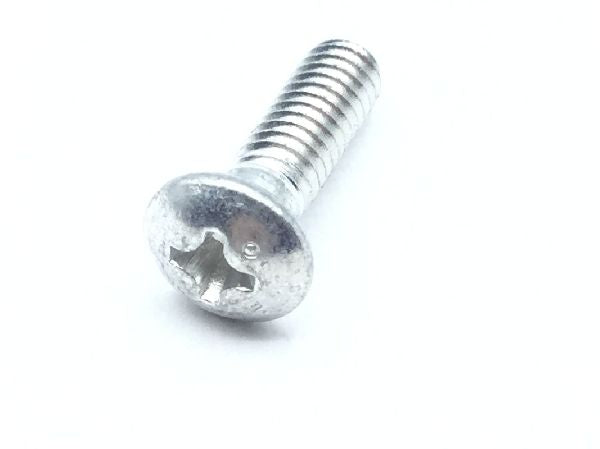

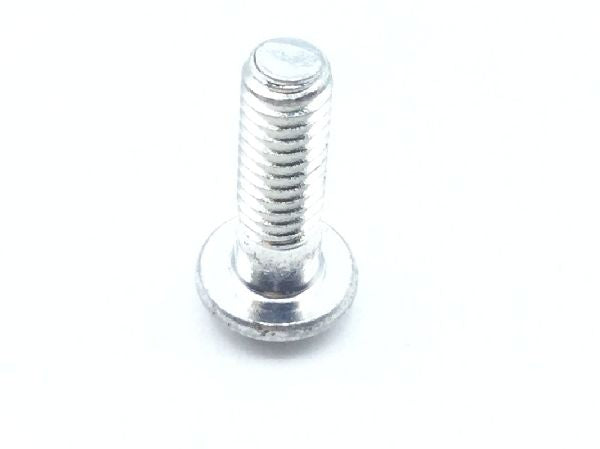

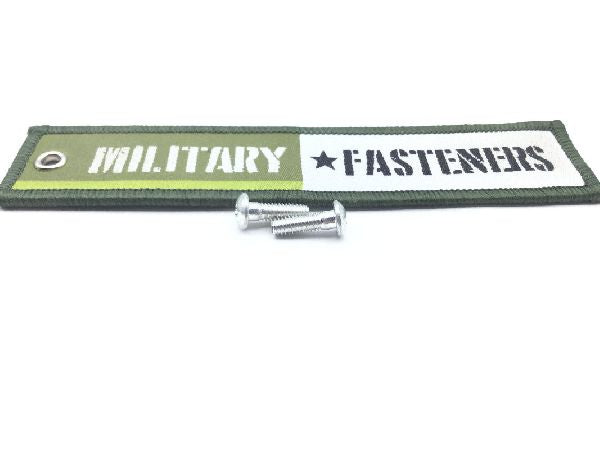

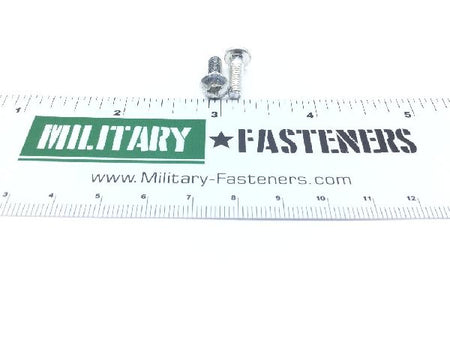

NAS220-8 Machine Screw

NSN: 5305-00-281-9368
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.48

Units per Pack 100

Price per Pack $48.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $48.00

Add item to quote

Head Style

Pan no. 2

Thread Class

Fastener Length: Between 0.546 inches and 0.563 inches
Head Height: Between 0.088 inches and 0.102 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel
Screw Surface Treatment: Cadmium
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.546 inches and 0.563 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.231 inches and 0.309 inches
