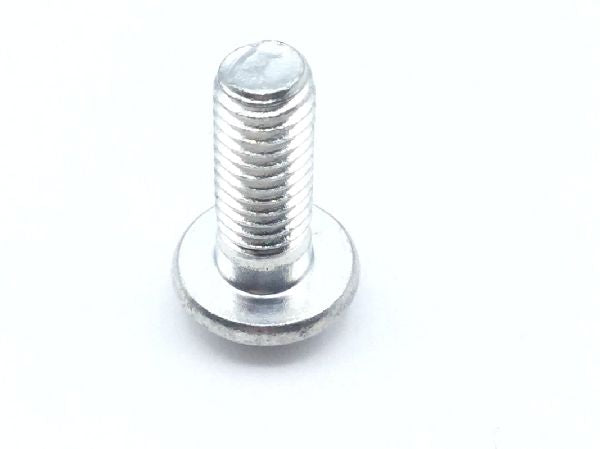

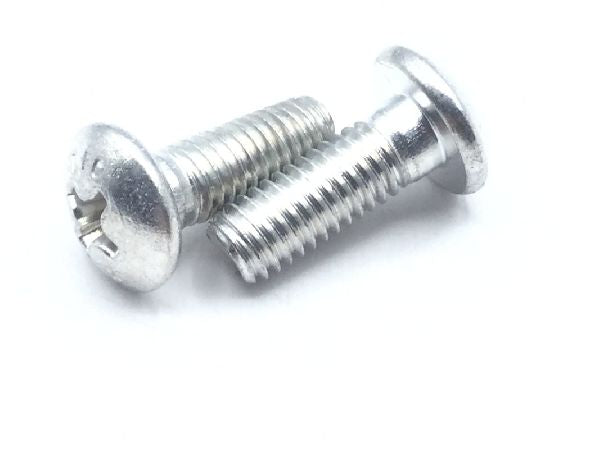

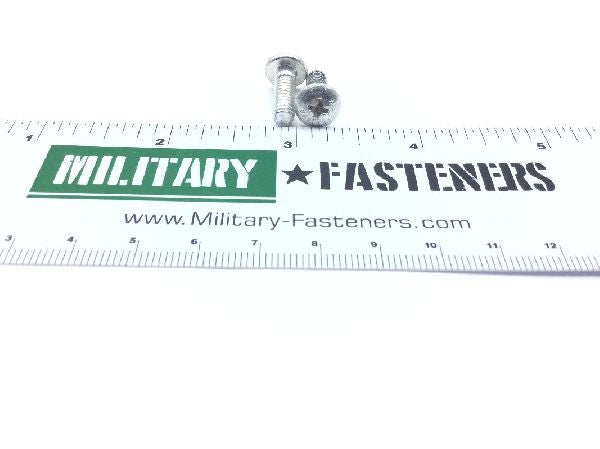

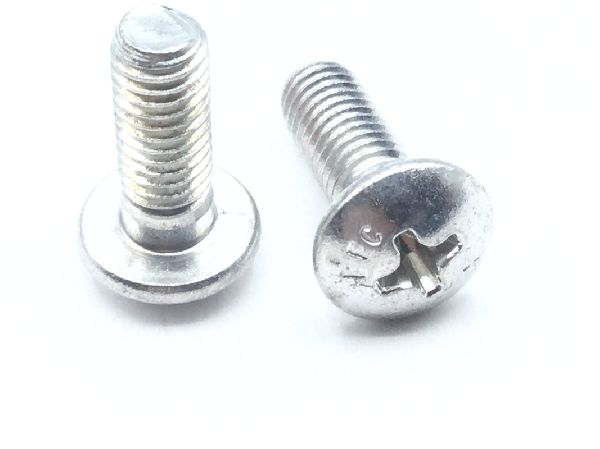

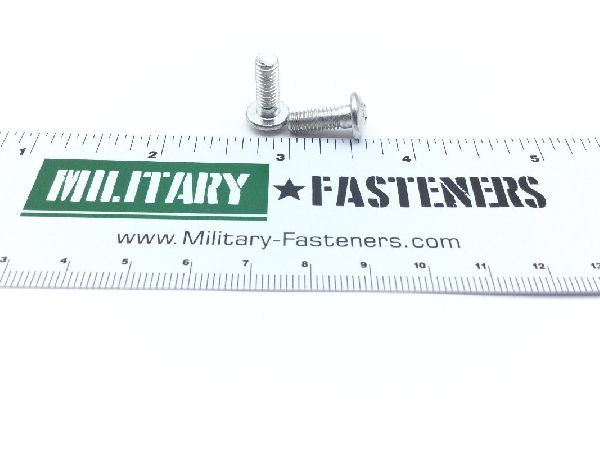

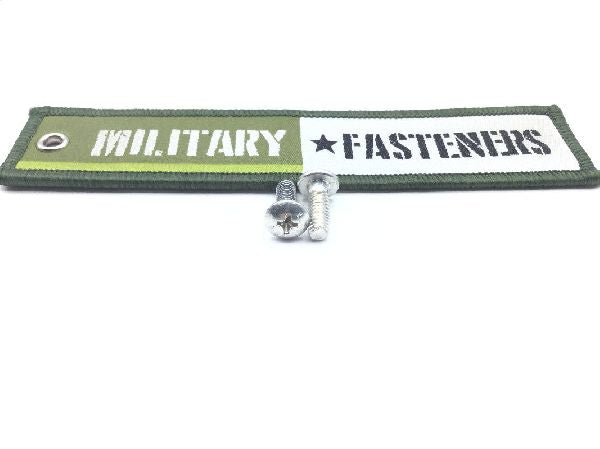

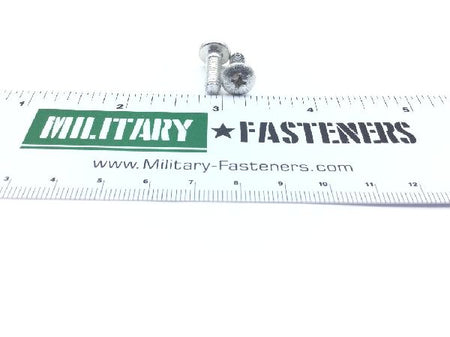

NAS221-8 Machine Screw
- Product Series
- NAS
- ECCN
- EAR99
- Schedule
- 7318.15.2091
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Fastener Length
- Between 0.516 inches and 0.563 inches
- Hardness Rating
- Between 26.0 rockwell c and 32.0 rockwell c
- Head Height
- Between 0.103 inches and 0.118 inches
- Internal Drive Style
- Cross recess type 1
- Min. Tensile Strength (psi)
- 125000 pounds per square inch
- Screw Material
- Steel comp 8630 or steel comp 4037
- Screw Material Specification
- Mil-s-6050 military specification 1st material response or ams 6300 assn standard 2nd material response
- Screw Surface Treatment
- Cadmium
- Screw Surface Treatment Specification
- Cl 3 federal specification single treatment response type 1 qq-p-416
- Specification Data
- 80205-nas221 professional/industrial association standard
- Thread Diameter
- 0.190 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.439 inches and 0.516 inches
- Thread Qty Per Inch (tpi)
- 32
- Thread Series Designator
- Unf (fine thread)
- Head Diameter
- Between 0.361 inches and 0.385 inches
