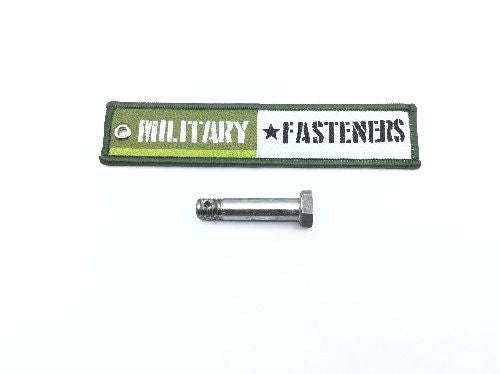

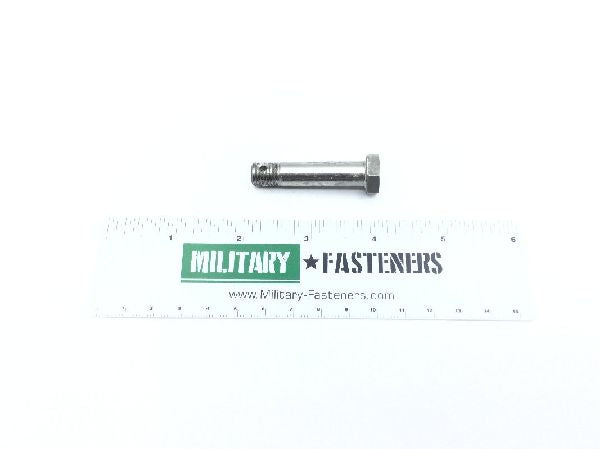

NAS2816C20D Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $67.84

Units per Pack 1

Price per Pack $67.84

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $67.84

Add item to quote

Head Style

Dished hexagon

Material

Iron alloy 660

Thread Class

Fastener Length: Between 1.689 inches and 1.719 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: Between 1.240 inches and 1.260 inches
Min. Tensile Strength (psi): 171000 pounds per square inch
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.429 inches and 0.479 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.553 inches and 0.564 inches
