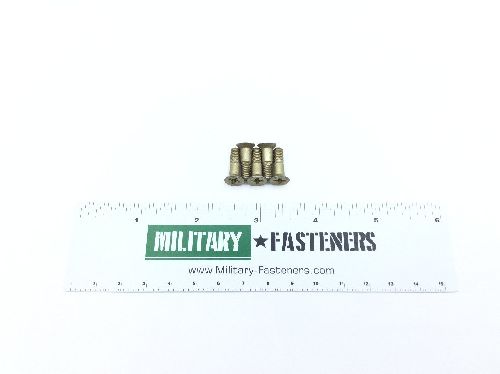

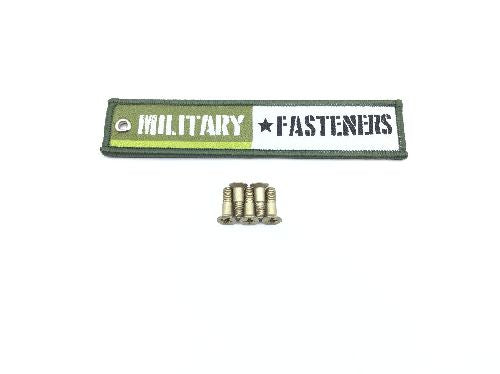

NAS2833C5PT Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $5.00

Units per Pack 10

Price per Pack $50.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $50.00

Add item to quote

Head Style

Flat countersunk

Material

Steel comp 4140 or steel comp e4340 or steel comp 8740

Surface Treatment

Nas 4006 assn standard single treatment response

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: 0.655 inches
Grip Diameter: Between 0.188 inches and 0.189 inches
Grip Length: Between 0.302 inches and 0.322 inches
Internal Drive Style: Offset cruciform (torque set)
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.377 inches and 0.385 inches
