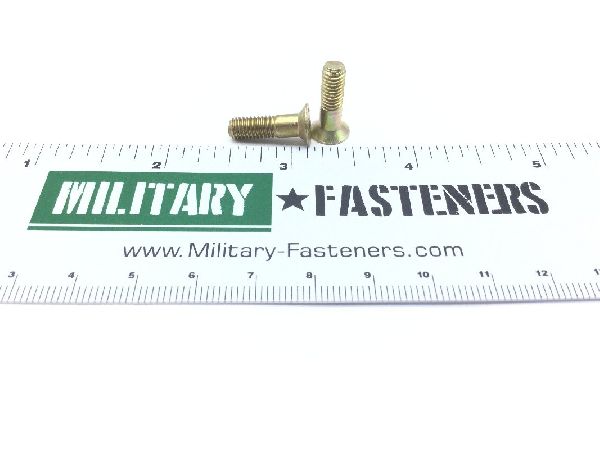

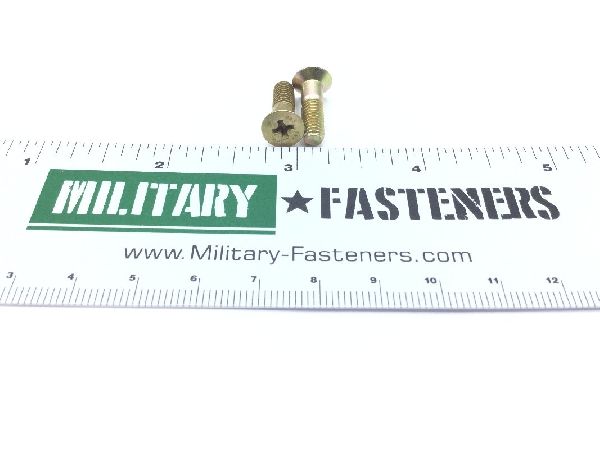

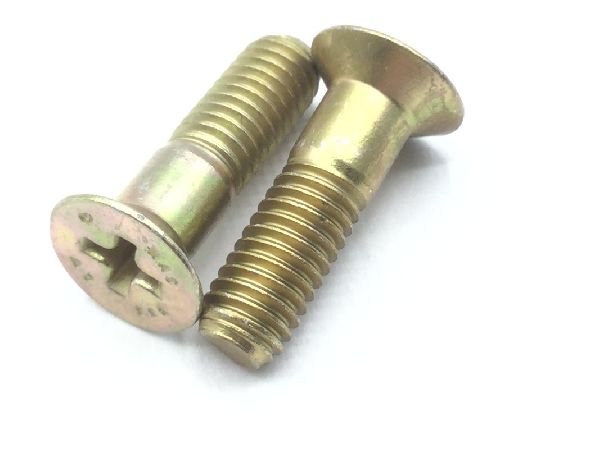

NAS333CPA5 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.69

Units per Pack 50

Price per Pack $34.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $34.50

Add item to quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Countersink Angle: Between 99 degrees and 101 degrees
Fastener Length: Between 0.64 inches and 0.687 inches
Grip Diameter: 0.1894 inches
Grip Length: 0.1885 inches
Hardness Rating: 36 rockwell c and 40 rockwell c
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas333 professional/industrial association standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.380 inches and 0.447 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.376 inches and 0.385 inches
