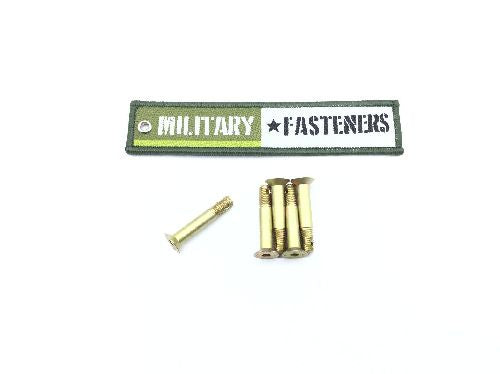

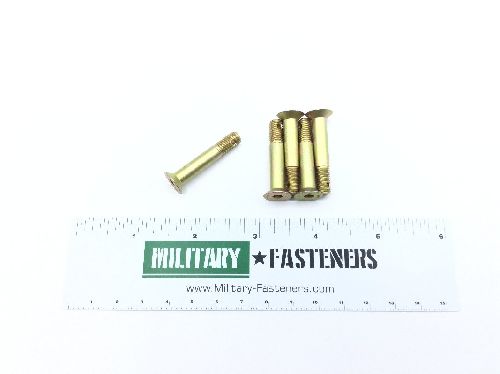

NAS334C13 Close Tolerance Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $11.78

Units per Pack 5

Price per Pack $58.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $58.90

Add item to quote

Head Style

Flat countersunk

Material

Steel comp

Surface Treatment

Type 2 class 3 federal specification single treatment response qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Distance From Head Largest Surface To Shank Hole Center: 1.240 inches first hole and 1.260 inches first hole
Fastener Length: Between 1.391 inches and 1.438 inches
Grip Diameter: Between 0.2483 inches and 0.2492 inches
Grip Length: Between 0.928 inches and 0.948 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.066 inches first hole and 0.086 inches first hole
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.443 inches and 0.510 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.157 inches and 0.159 inches
Head Diameter: Between 0.497 inches and 0.507 inches
