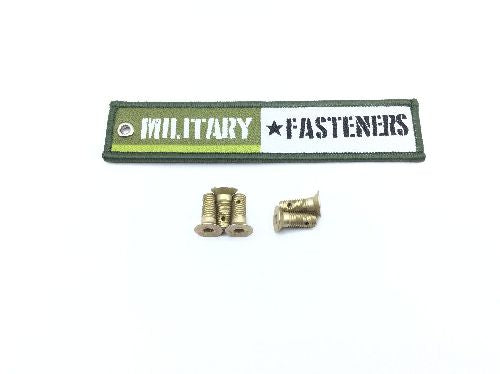

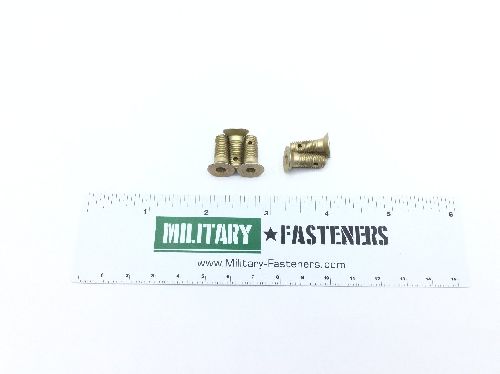

NAS334C5 Close Tolerance Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $12.13

Units per Pack 5

Price per Pack $60.65

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $60.65

Add item to quote

Head Style

Flat countersunk

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Countersink Angle: 100.0 degrees
Distance From Head Largest Bearing Surface To Shank Hole Center: 0.500 inches first hole
Fastener Length: Between 0.641 inches and 0.688 inches
Grip Diameter: Between 0.2483 inches and 0.2492 inches
Grip Length: Between 0.178 inches and 0.198 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole
Specification Data: 80205-nas334 professional/industrial association standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.443 inches and 0.510 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Across Flats: Between 0.157 inches and 0.159 inches
Head Diameter: Between 0.497 inches and 0.507 inches
