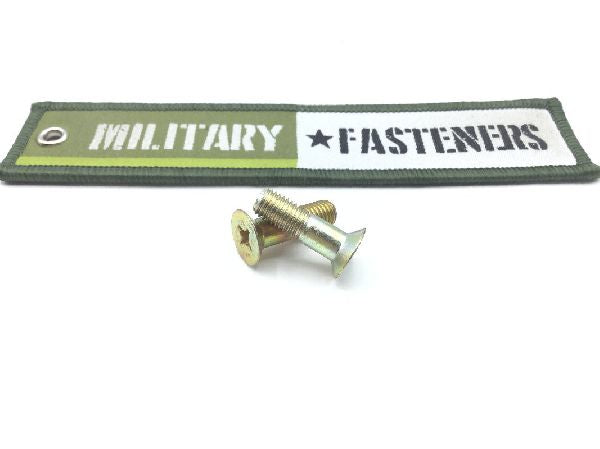

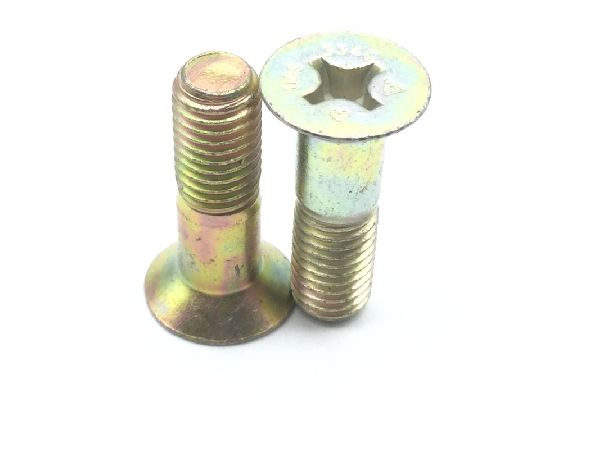

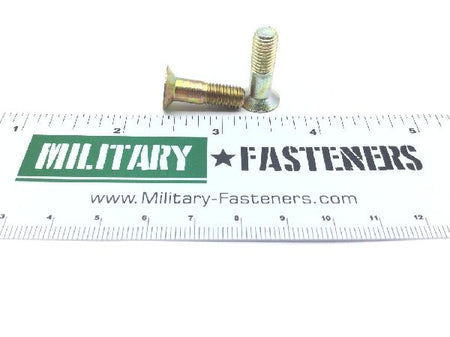

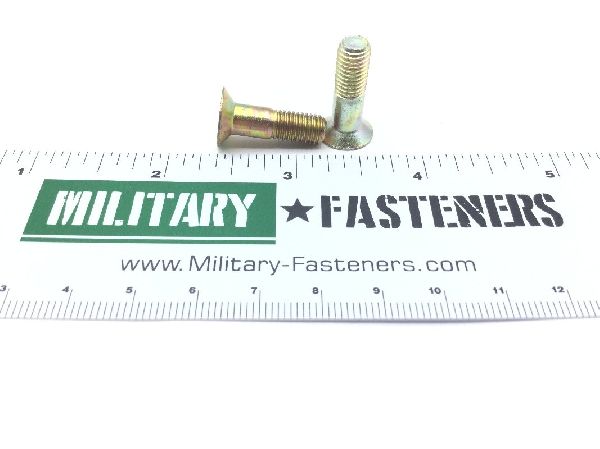

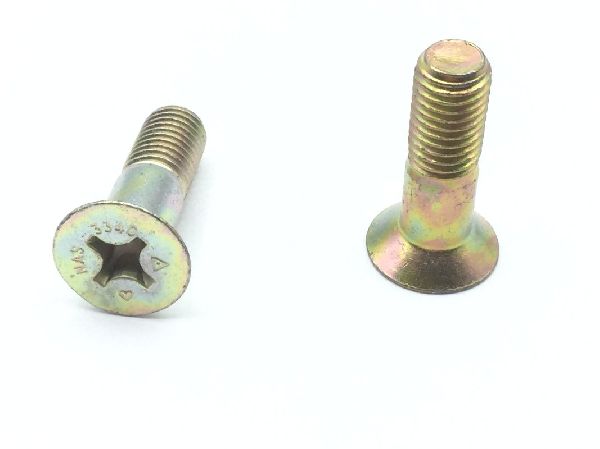

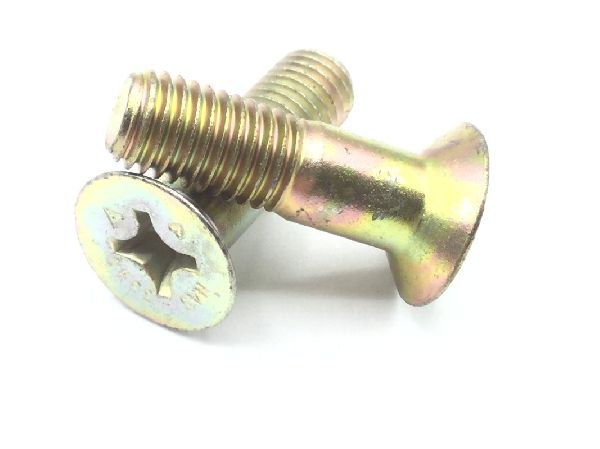

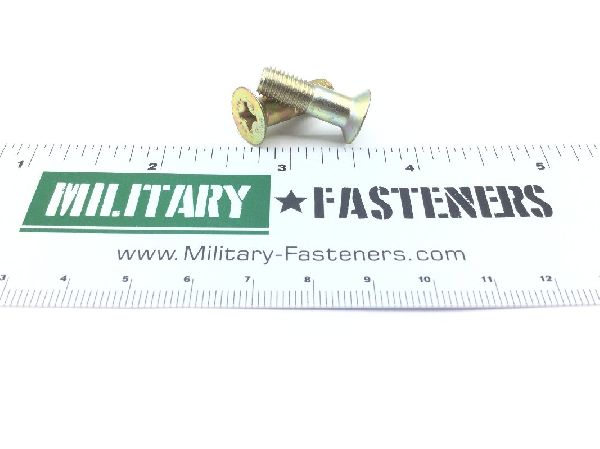

NAS334CPA6-5 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.81

Units per Pack 25

Price per Pack $45.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $45.25

Add item to quote

Head Style

Flat countersunk

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.827 inches and 0.874 inches
Grip Diameter: Between 0.2483 inches and 0.2492 inches
Grip Length: Between 0.364 inches and 0.384 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas334 professional/industrial association standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.443 inches and 0.510 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.497 inches and 0.507 inches
