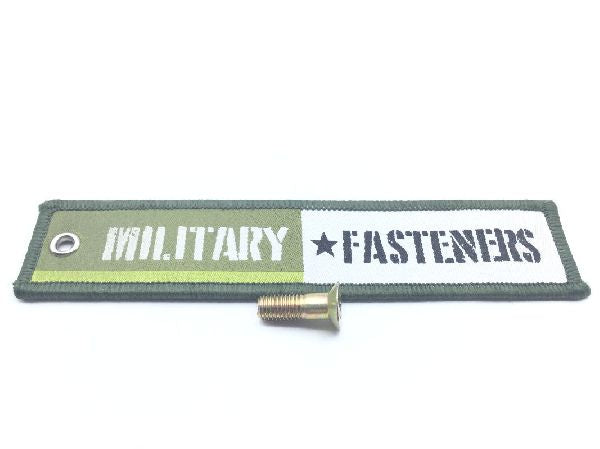

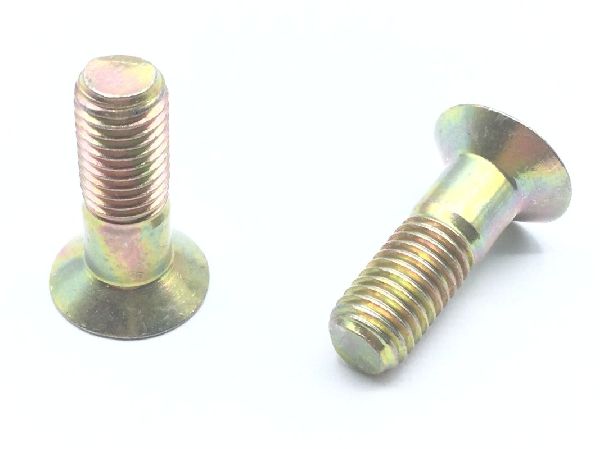

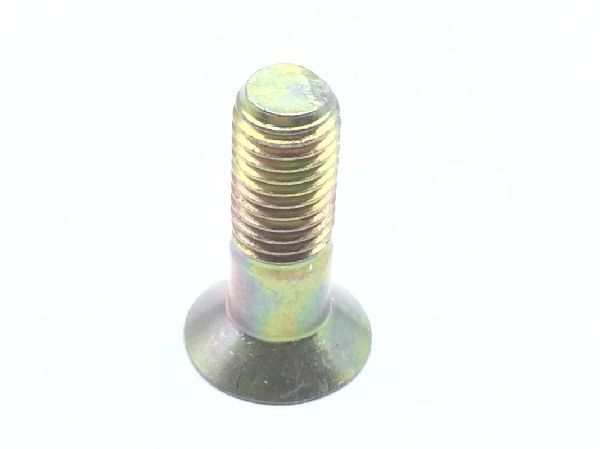

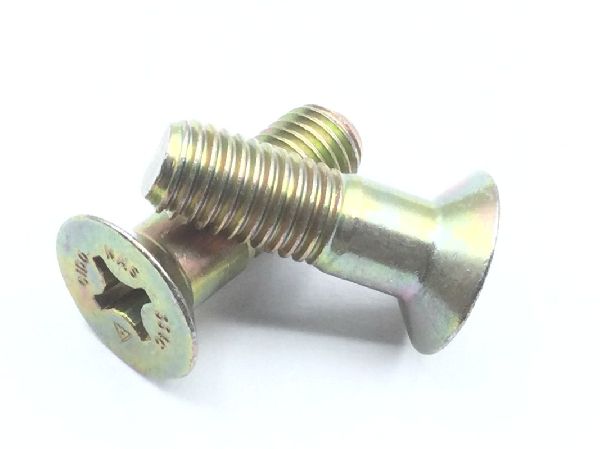

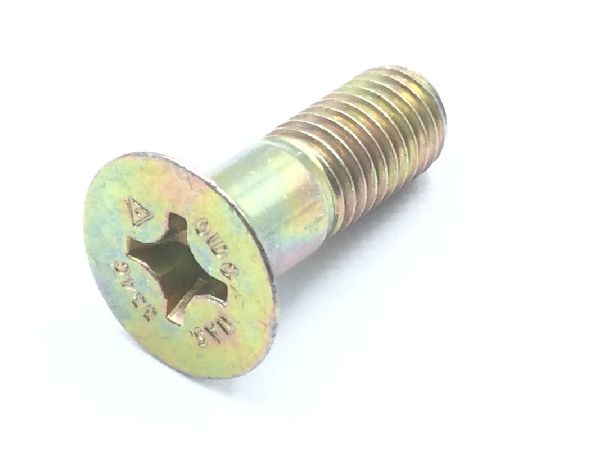

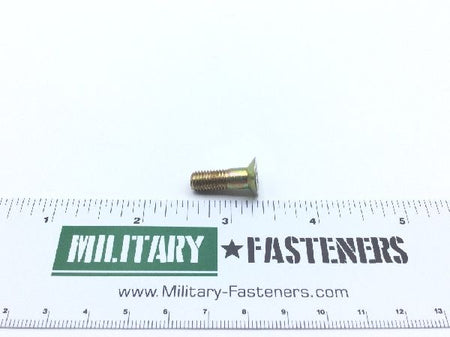

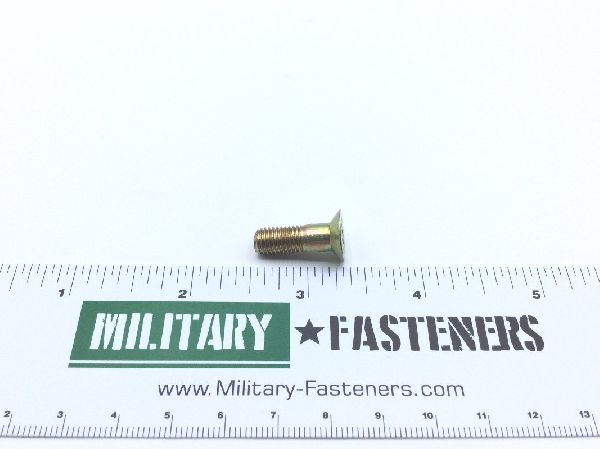

NAS334CPA6 Close Tolerance Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Cl 3 federal specification single treatment response grip type 2 qq-p-416

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.765 inches and 0.812 inches
Grip Diameter: Between 0.2483 inches and 0.2492 inches
Grip Length: 0.375 inches
Hardness Rating: 36.0 rockwell c grip and 40.0 rockwell c grip
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas334 professional/industrial association standard
Surface Finish: 32.0 microinches top of head
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.398 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.497 inches and 0.507 inches
