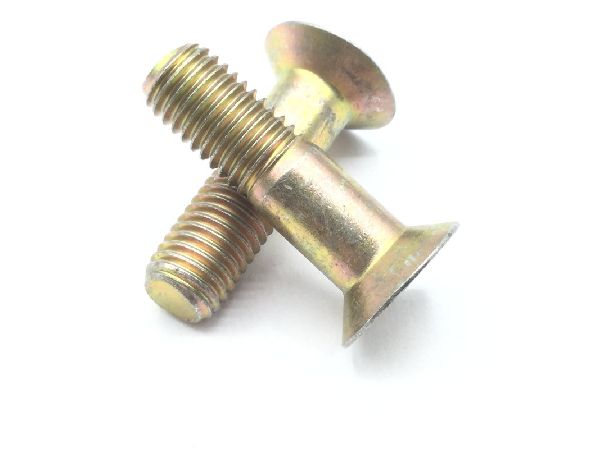

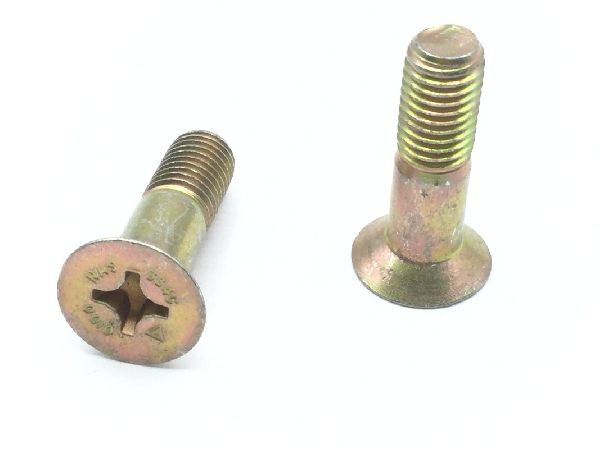

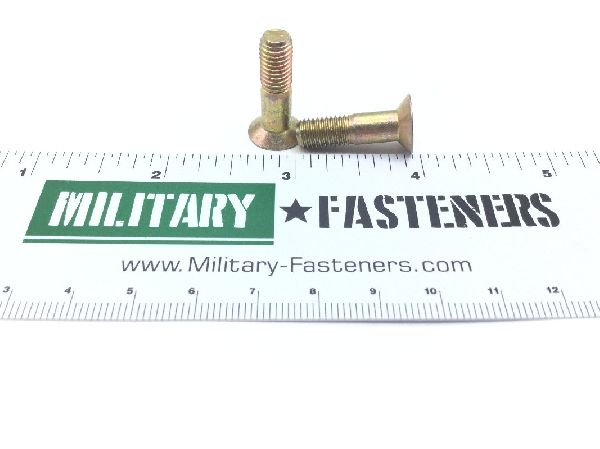

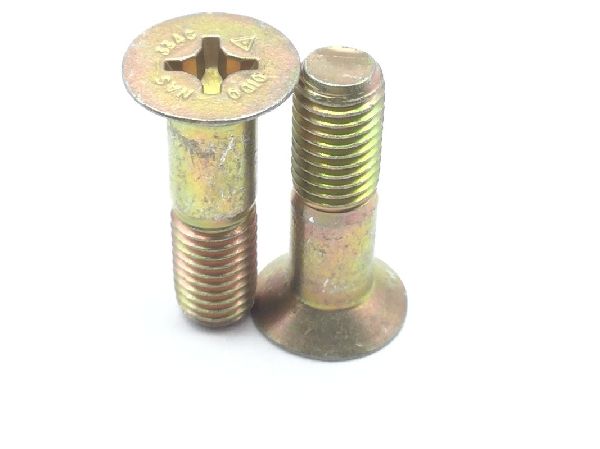

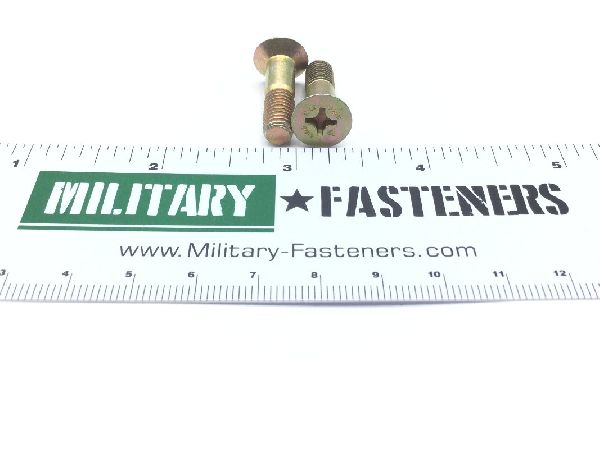

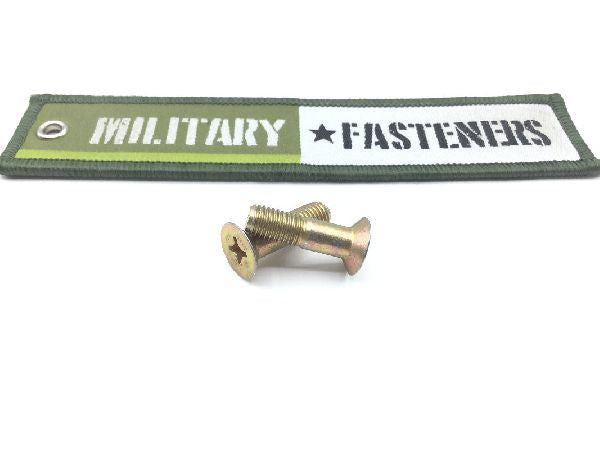

NAS334CPA7 Close Tolerance Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $0.77

Units per Pack 50

Price per Pack $38.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $38.50

Add item to quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response grip type 2 qq-p-416

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.891 inches and 0.938 inches
Grip Diameter: Between 0.2483 inches and 0.2492 inches
Grip Length: 0.438 inches
Hardness Rating: 36.0 rockwell c grip and 40.0 rockwell c grip
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas334 professional/industrial association standard
Surface Finish: 32.0 microinches top of head
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.398 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.497 inches and 0.507 inches
