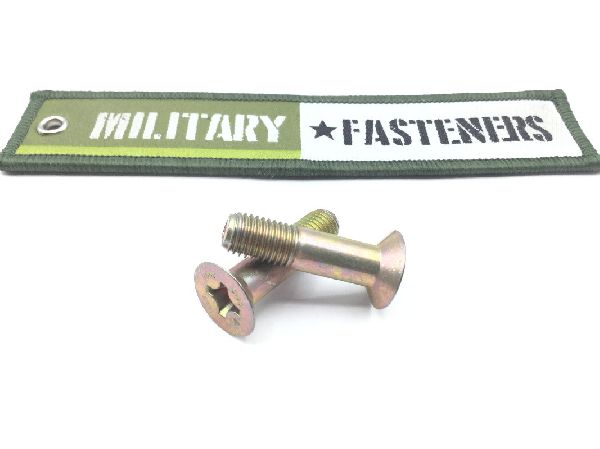

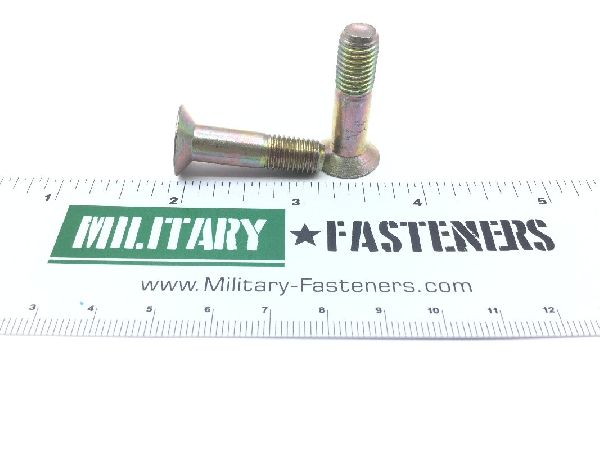

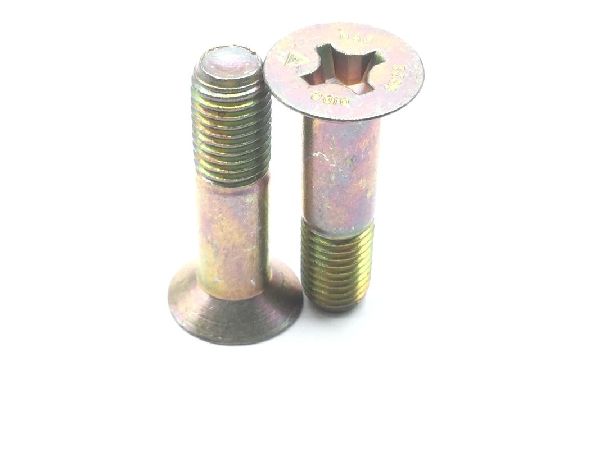

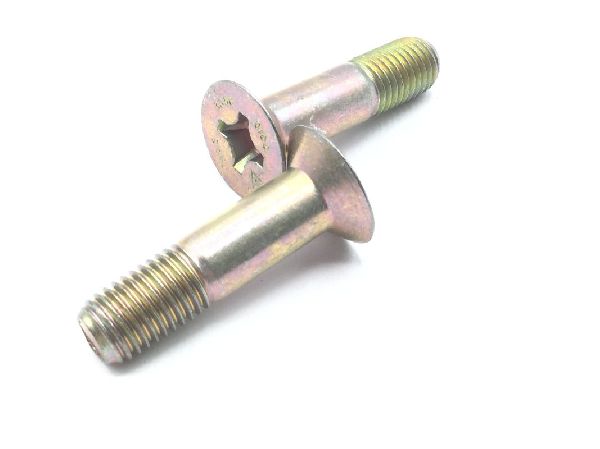

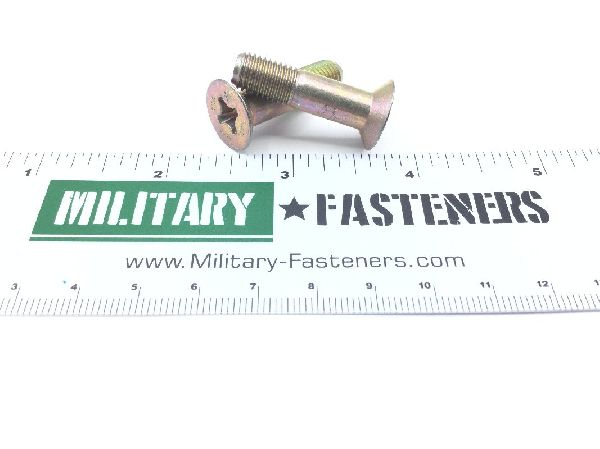

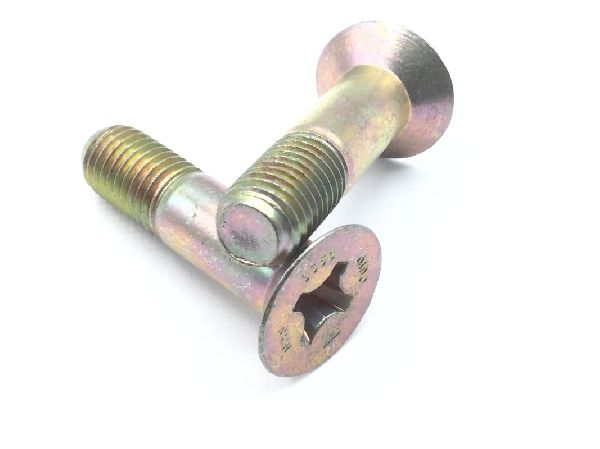

NAS335CPA11 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Steel

Thread Class

Countersink Angle: 100 degrees
Fastener Length: Between 1.203 inches and 1.25 inches
Grip Diameter: Between 0.3108 inches and 0.3117 inches
Grip Length: Between 0.678 inches and 0.698 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.505 inches and 0.572 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.625 inches and 0.635 inches
