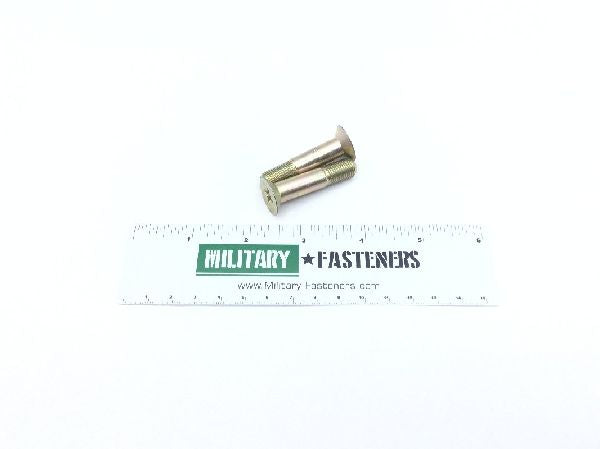

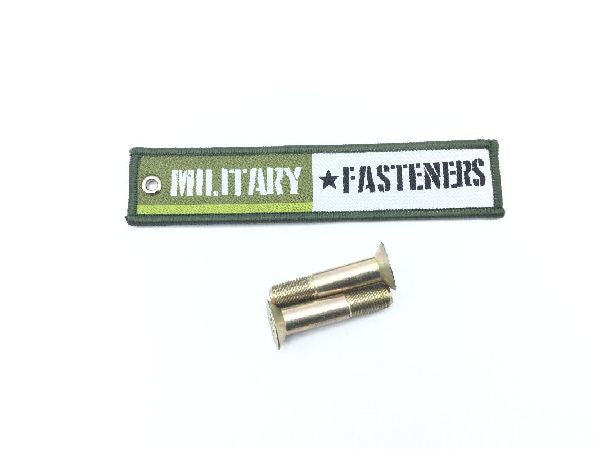

NAS336CPA15 Close Tolerance Screw

Product Series: NAS
ECCN: 9A991
Schedule: 7318.15.2091

Price per Unit $9.63

Units per Pack 5

Price per Pack $48.15

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $48.15

Add item to quote

Head Style

Flat countersunk

Material

Steel

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: Between 1.687 inches and 1.734 inches
Grip Diameter: Between 0.3733 inches and 0.3742 inches
Grip Length: Between 1.052 inches and 1.072 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.615 inches and 0.682 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.752 inches and 0.762 inches
