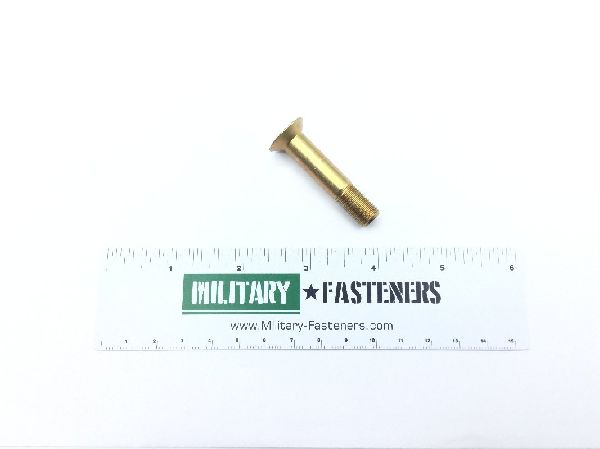

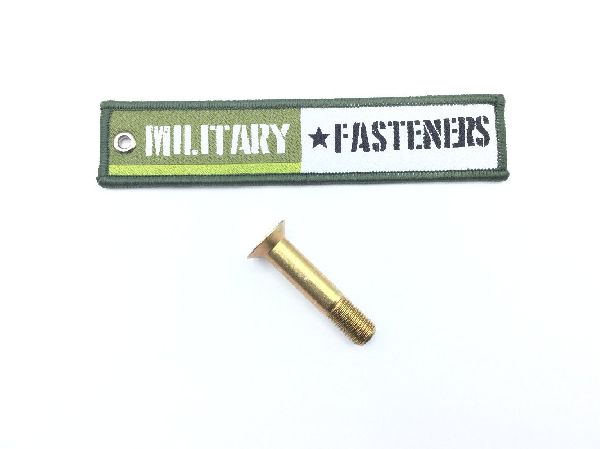

NAS336CPA16 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $11.78

Units per Pack 5

Price per Pack $58.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $58.90

Add item to quote

Head Style

Flat countersunk

Material

Steel comp

Surface Treatment

Class 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 1.813 inches and 1.860 inches
Grip Diameter: Between 0.3733 inches and 0.3742 inches
Grip Length: Between 1.178 inches and 1.198 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas336 professional/industrial association standard
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.615 inches and 0.682 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.752 inches and 0.762 inches
