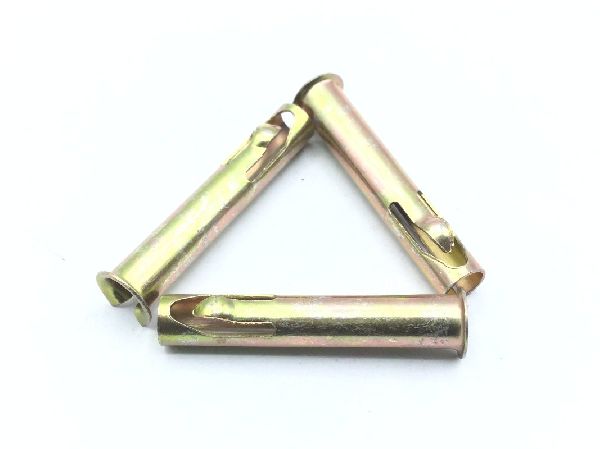

NAS427K12 Spring Pin

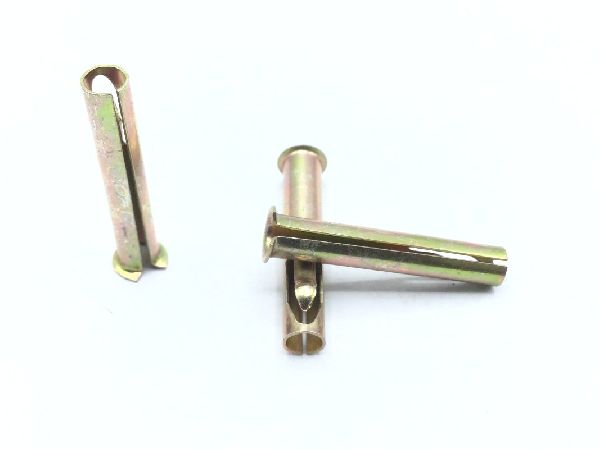

NAS427K12 Spring Pin (2)
NAS427K12 Spring Pin (3)

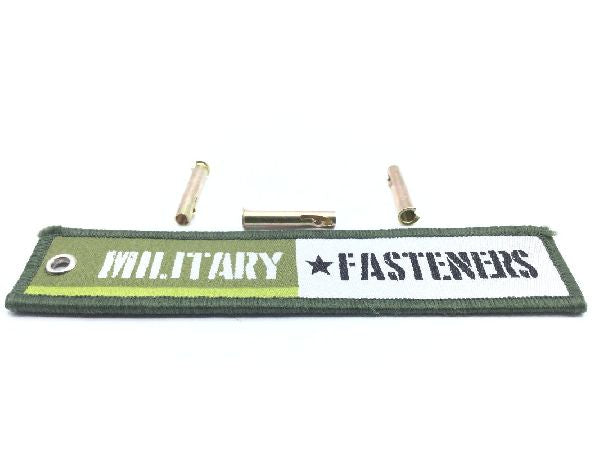

NAS427K12 Spring Pin (4)

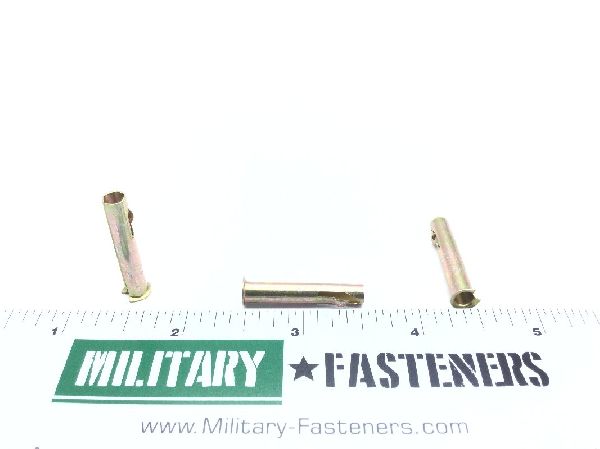

NAS427K12 Spring Pin (5)

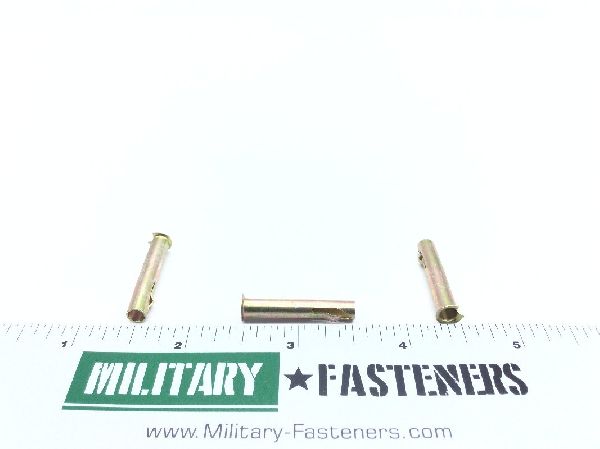

NAS427K12 Spring Pin (6)
NAS427K12 Spring Pin
NAS427K12 Spring Pin (2)
NAS427K12 Spring Pin (3)
NAS427K12 Spring Pin (4)
NAS427K12 Spring Pin (5)
NAS427K12 Spring Pin (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS427K12 Spring Pin

Product Series
NAS
ECCN
EAR99
Schedule
7318.29.0000
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp 1095
Fastener Length
Between 1.031 inches and 1.061 inches
Grip Length
Between 0.750 inches and 0.780 inches
Hardness Rating
47.0 rockwell c and 52.0 rockwell c
Material Specification
Mil-s-7947 military specification single material response
Style Designator
Spring
Diameter
Between 0.180 inches and 0.190 inches
Head Diameter
Between 0.240 inches and 0.260 inches
