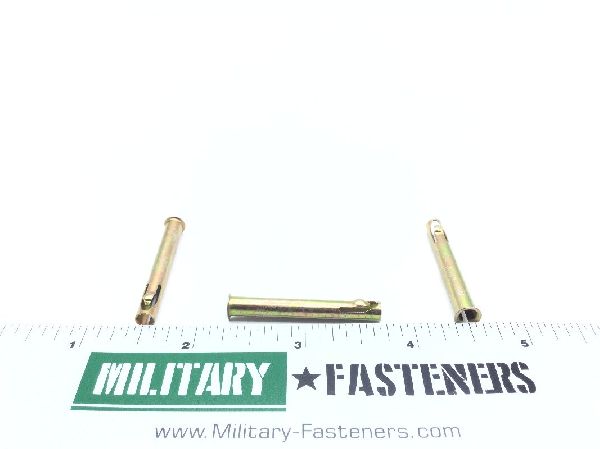

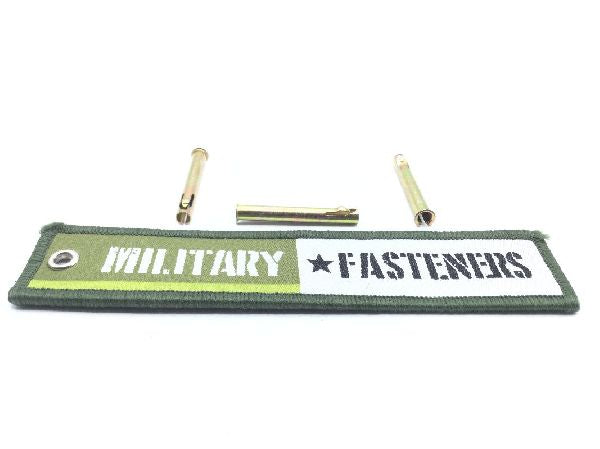

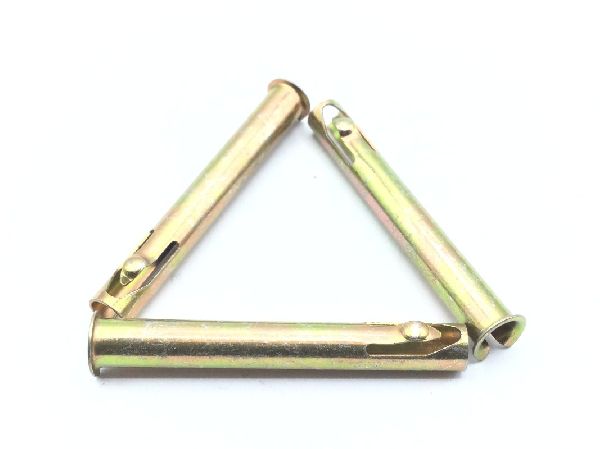

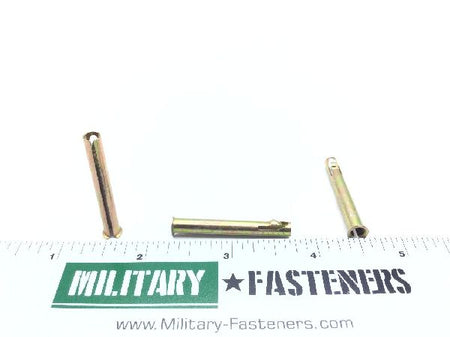

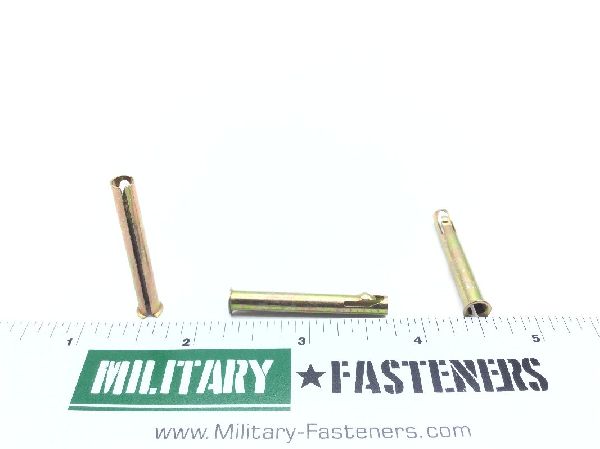

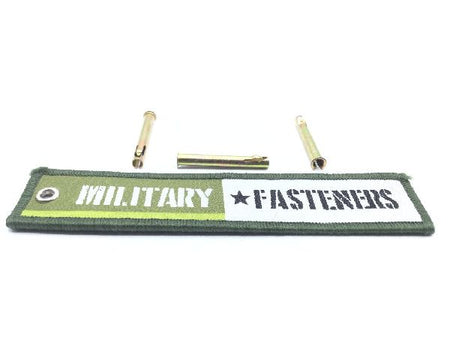

NAS427K18 Spring Pin
NAS427K18 Spring Pin (2)
NAS427K18 Spring Pin (3)
NAS427K18 Spring Pin (4)
NAS427K18 Spring Pin (5)
NAS427K18 Spring Pin (6)
NAS427K18 Spring Pin
NAS427K18 Spring Pin (2)
NAS427K18 Spring Pin (3)
NAS427K18 Spring Pin (4)
NAS427K18 Spring Pin (5)
NAS427K18 Spring Pin (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS427K18 Spring Pin

Product Series
NAS
ECCN
EAR99
Schedule
7318.29.0000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp 1095
Surface Treatment
Cl 3 federal specification single treatment response type 2 qq-p-416
Fastener Length
Between 1.411 inches and 1.421 inches
Grip Length
Between 1.120 inches and 1.150 inches
Hardness Rating
47.0 rockwell c and 52.0 rockwell c
Material Specification
Mil-s-7947 military specification single material response
Specification Data
80205-nas427 professional/industrial association standard
Style Designator
Spring
Diameter
Between 0.180 inches and 0.190 inches
Head Diameter
Between 0.240 inches and 0.260 inches
