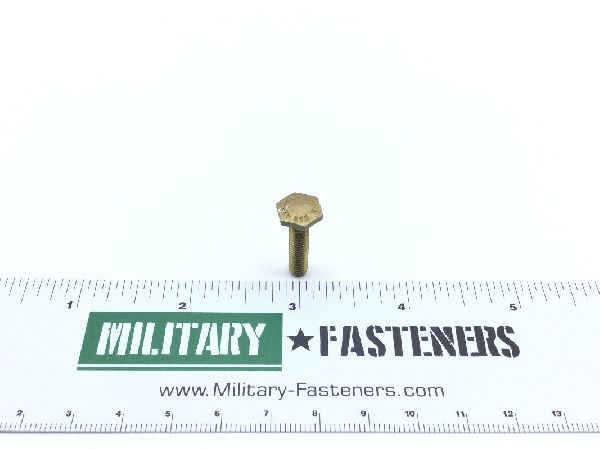

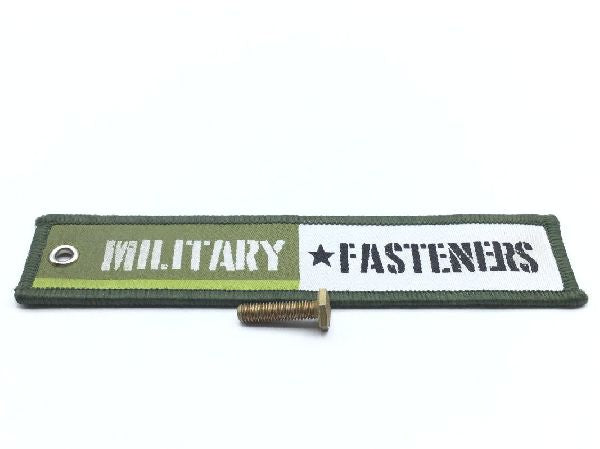

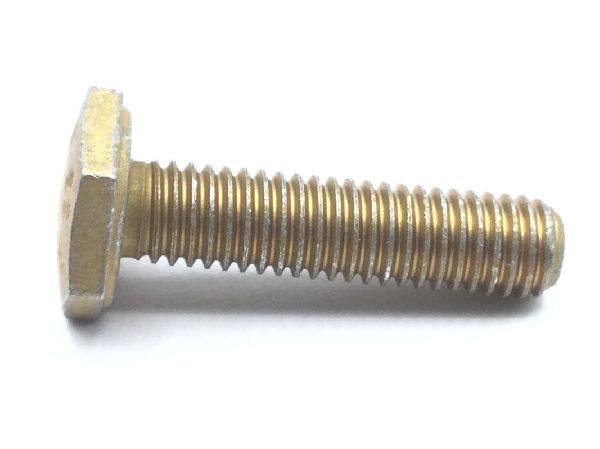

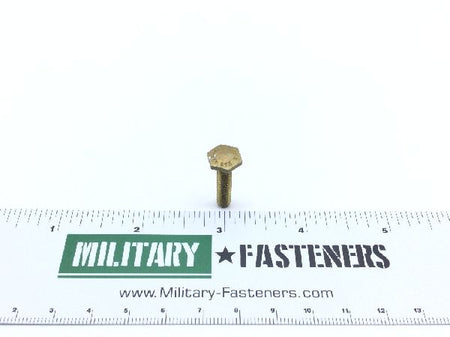

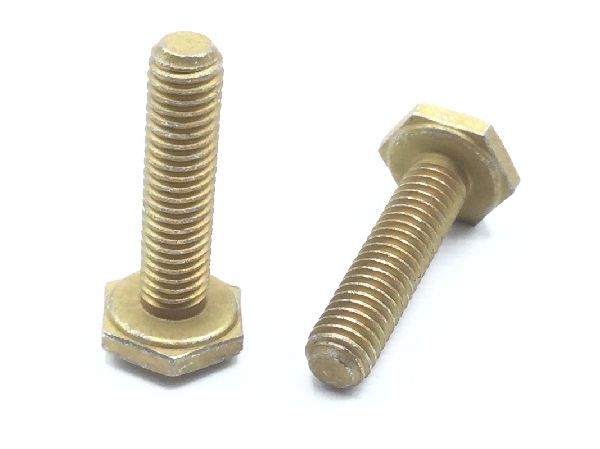

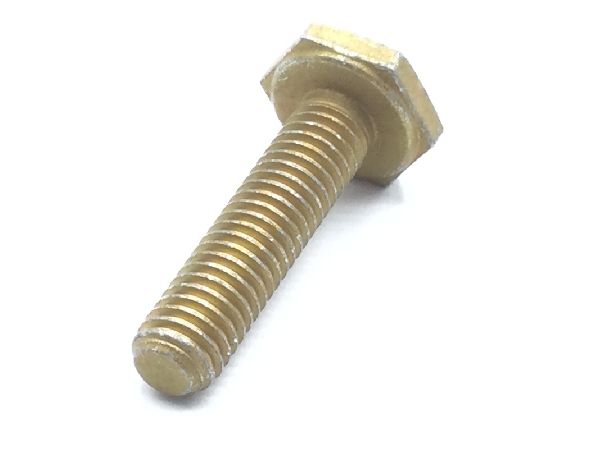

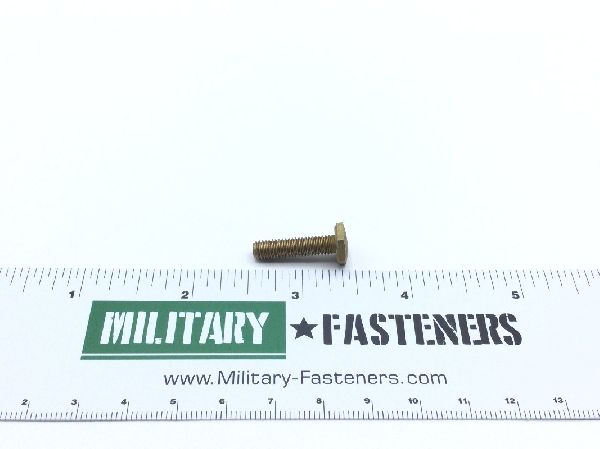

NAS428-3A6 Machine Bolt

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Crowned hexagon
Material
Steel
Surface Treatment
Class 2 federal specification 1st treatment response type2 qq-p-416
Thread Class
3a
Fastener Length
Between 0.74 inches and 0.76 inches
Head Height
Between 0.099 inches and 0.119 inches
Special Features
Mark steel bolts with recessed
Thread Diameter
0.19 inches
Thread Direction
Right-hand
Thread Length
Between 0.74 inches and 0.76 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unjf (fine thread with external controlled root radius)
Head Diameter
Between 0.365 inches and 0.377 inches
