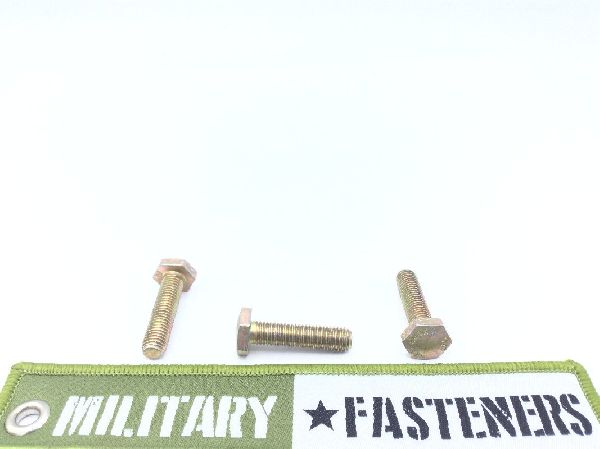

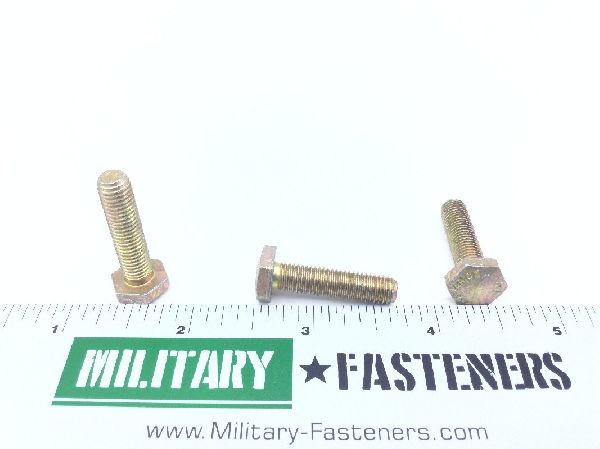

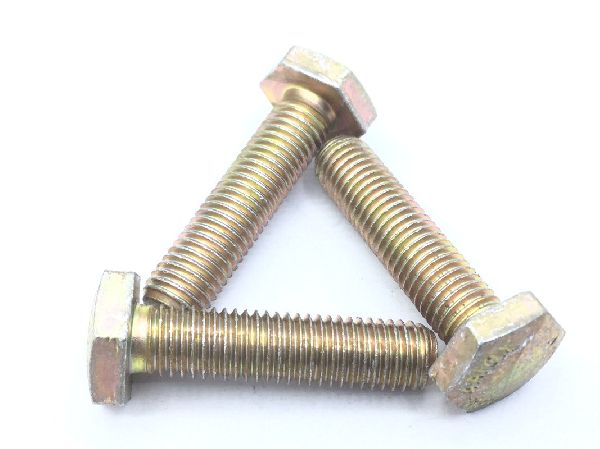

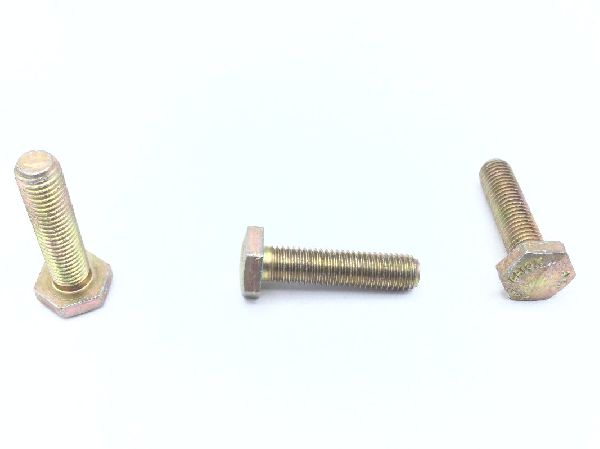

NAS428-4A10 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $1.73

Units per Pack 20

Price per Pack $34.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $34.60

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Type 2 class 2 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: Between 1.151 inches and 1.213 inches
Features: Washer
Features Provided: Washer
Grip Diameter: 0.398 inches
Grip Length: Between 0.031 inches and 0.062 inches
Head Height: 0.172 inches
Part Name Assigned By Controlling Agency: Adjusting 000 psi-crowned hexagon head 125 machine bolt
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 1.000 inches and 1.062 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.428 inches and 0.440 inches
