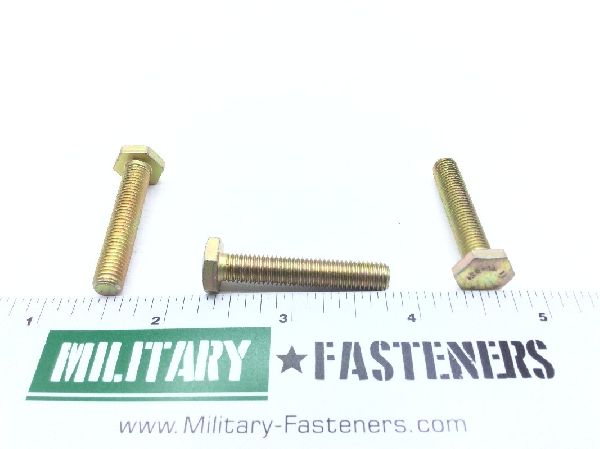

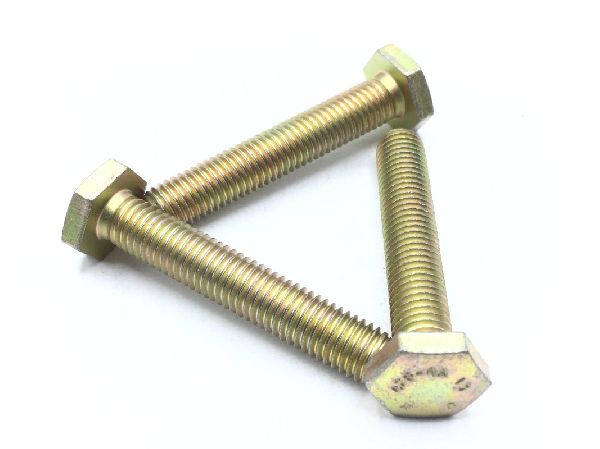

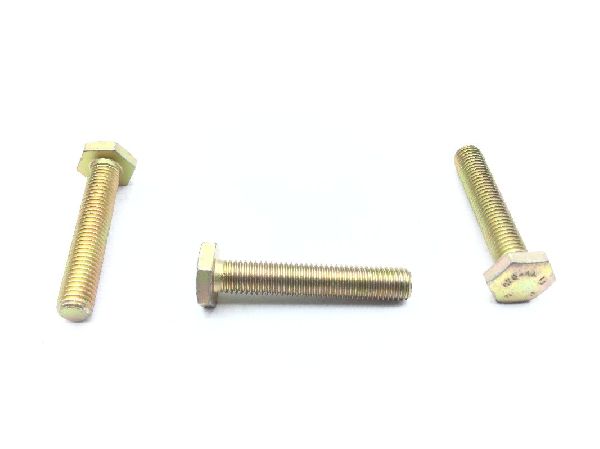

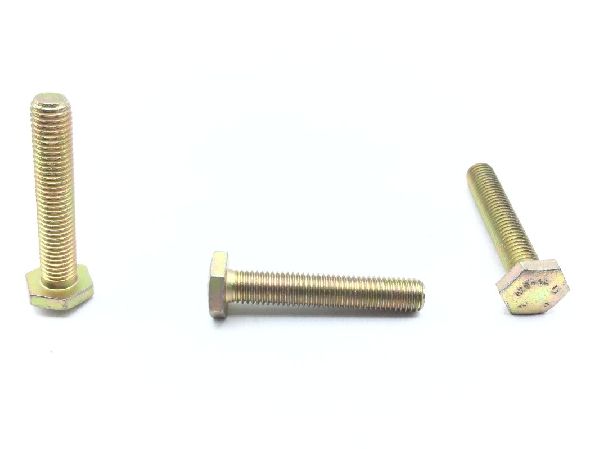

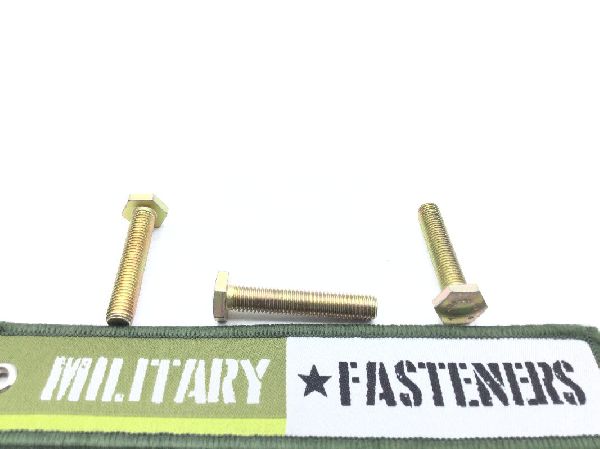

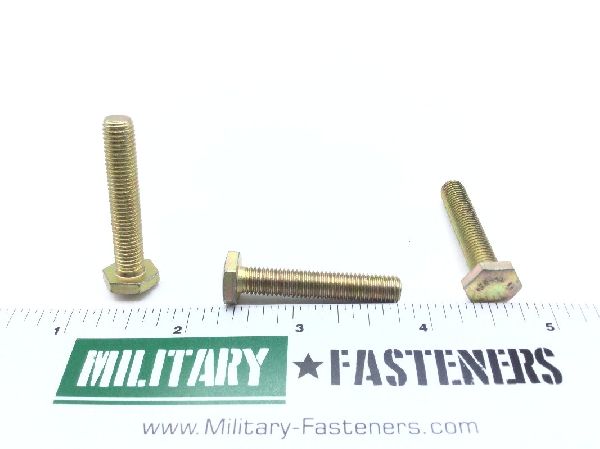

NAS428-4A13 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $3.94

Units per Pack 10

Price per Pack $39.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $39.40

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response ty2 qq-p-416

Thread Class

Fastener Length: Between 1.516 inches and 1.578 inches
Features: Washer
Features Provided: Washer
Grip Diameter: 0.398 inches
Grip Length: Between 0.031 inches and 0.062 inches
Head Height: 0.172 inches
Part Name Assigned By Controlling Agency: Adjusting 000 psi-crownedhexagon head 125 machne bolt
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 1.375 inches and 1.437 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.428 inches and 0.440 inches
