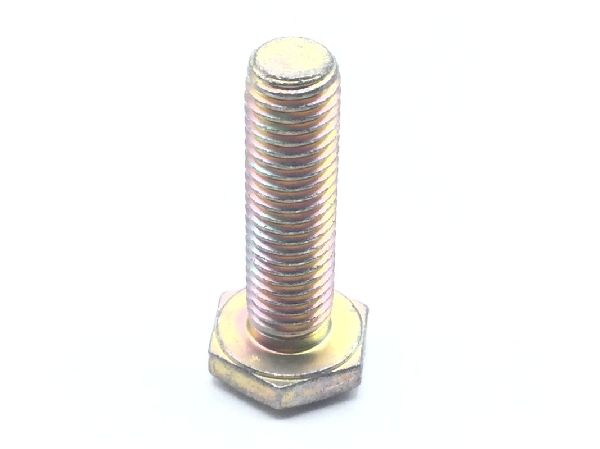

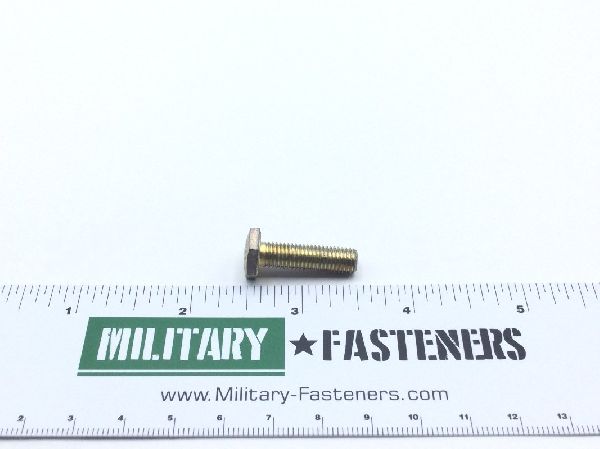

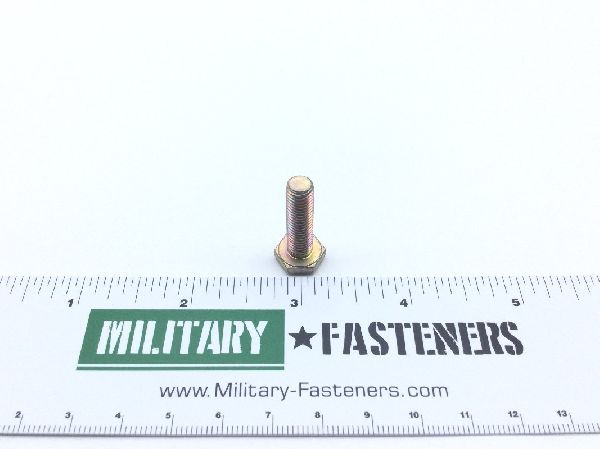

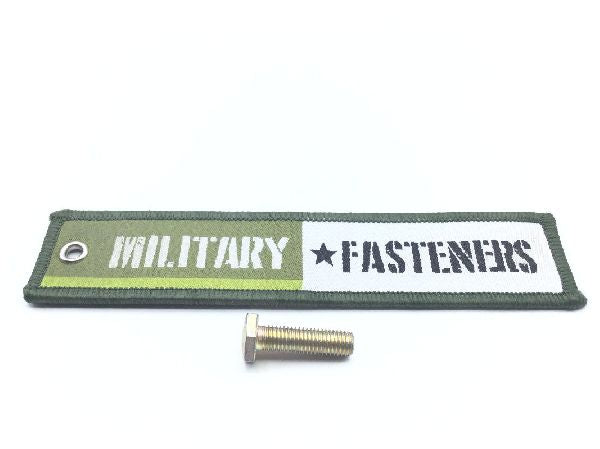

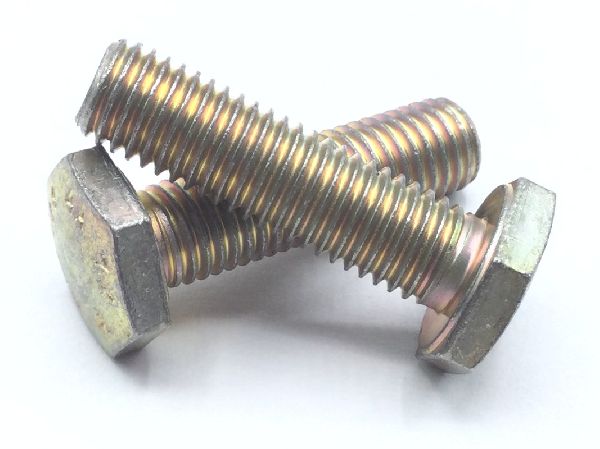

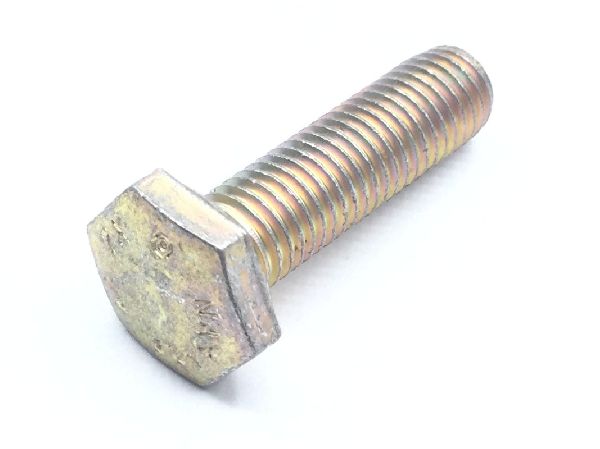

NAS428-4A7 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $4.72

Units per Pack 10

Price per Pack $47.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $47.20

Add item to quote

Head Style

Crowned hexagon

Material

Steel

Surface Treatment

Type 2class 3 federal specification all treatment responses type 2.qq-p-416 qq-p-416

Thread Class

End Application: E fwd fuslag
Fastener Length: 0.875 inches
Grip Length: Between 0.031 inches and 0.062 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: 0.141 inches
Material Specification: Mil-b-6812 military specification all material responses
Min. Tensile Strength (psi): 125000 pounds per square inch
Part Name Assigned By Controlling Agency: Adjusting 000 psi-crowned hexagon head 125 machine bolt
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.563 inches and 0.594 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: 0.438 inches
