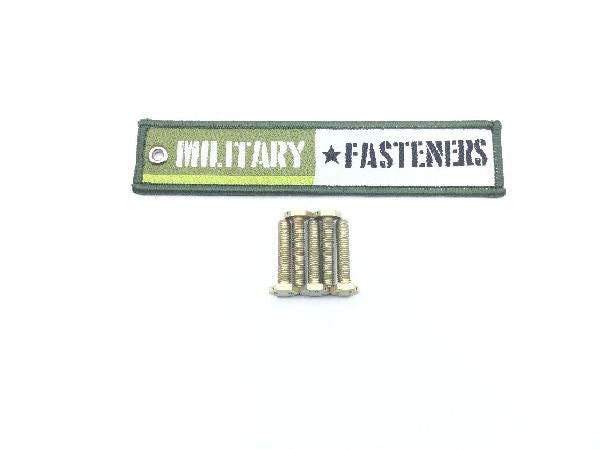

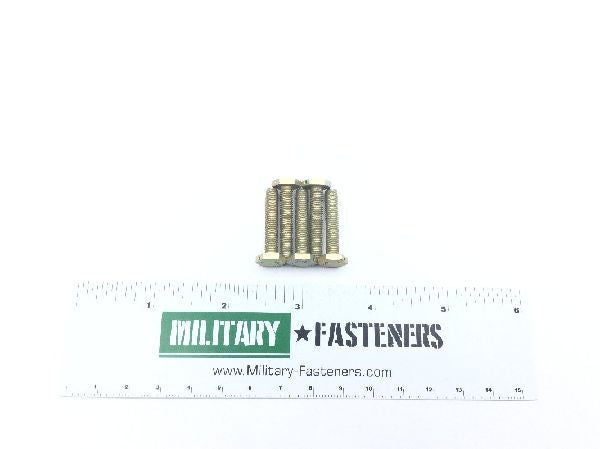

NAS428H3-10 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $17.94

Units per Pack 5

Price per Pack $89.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $89.70

Add item to quote

Head Style

Crowned hexagon

Material

Steel

Thread Class

Fastener Length: Between 1.000 inches and 1.062 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.031 inches and 0.062 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: 0.109 inches
Hole Configuration Style: Hexagon flats
Hole Quantity: 1
Hole Type: Drilled
Min. Tensile Strength (psi): 125000 pounds per square inch
Specification Data: 80205-nas428 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.938 inches and 0.969 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.365 inches and 0.377 inches
Hole Diameter: 0.047 inches
