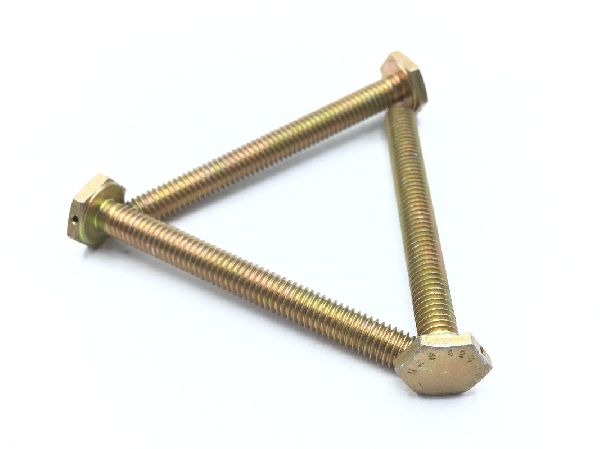

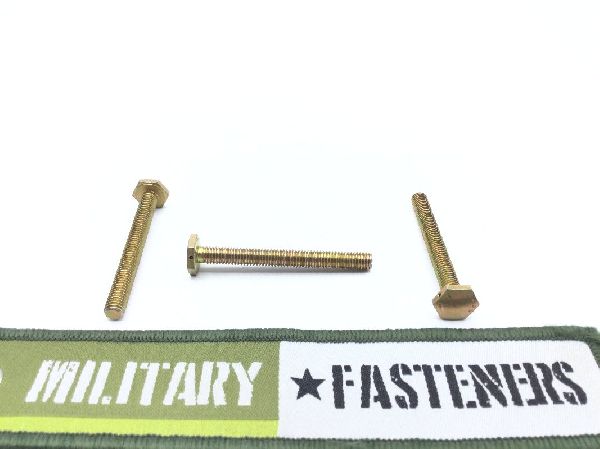

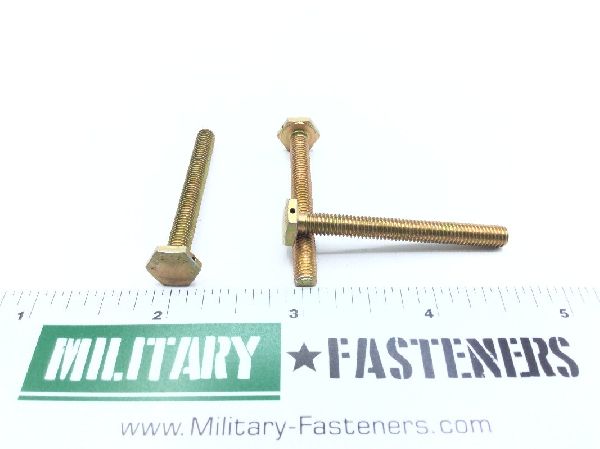

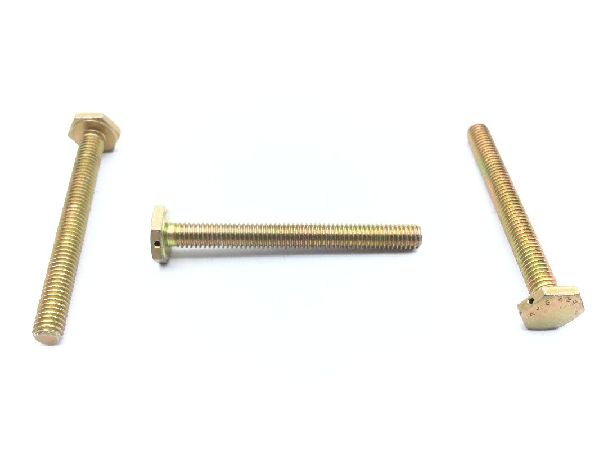

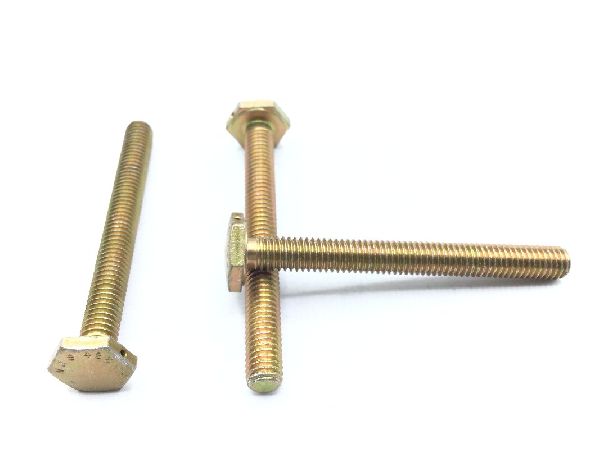

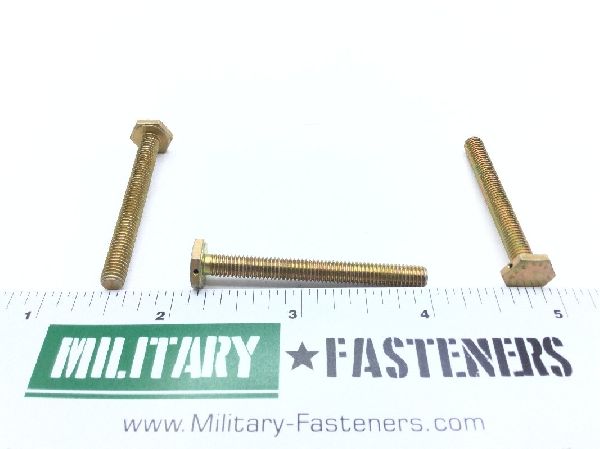

NAS428H3-16 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $10.39

Units per Pack 10

Price per Pack $103.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $103.90

Add item to quote

Head Style

Crowned hexagon

Material

Steel comp 4140 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130 or steel comp 4037

Surface Treatment

Qq-p-416 type 2 class 2 federal specification single treatment response

Thread Class

Thread Quantity Per Inch (tpi)

Fastener Length: Between 1.750 inches and 1.812 inches
Features: Finished head
Features Provided: Finished head
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.099 inches and 0.119 inches
Hole Configuration Style: Hexagon flats
Hole Quantity: 1
Hole Type: Drilled
Min. Tensile Strength (psi): 125000 pounds per square inch
Specification Data: 80205-nas428 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 1.688 inches and 1.812 inches
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.365 inches and 0.377 inches
Hole Diameter: 0.035 inches
