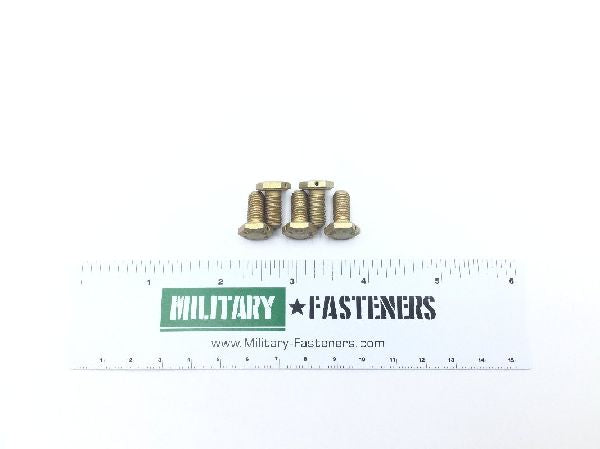

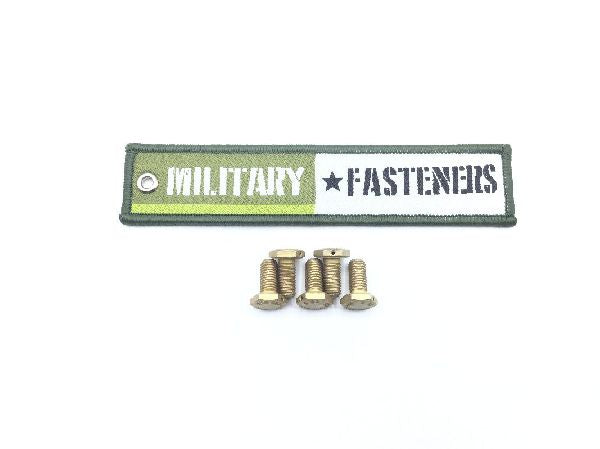

NAS428H4A4 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $20.72

Units per Pack 2

Price per Pack $41.44

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $41.44

Add item to quote

Head Style

Crowned hexagon

Material

Steel

Thread Class

Fastener Length: Between 0.500 inches and 0.562 inches
Features: Finished head
Features Provided: Finished head
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: 0.141 inches
Hole Configuration Style: Hexagon flats
Hole Quantity: 1
Hole Type: Drilled
Min. Tensile Strength (psi): 125000 pounds per square inch
Specification Data: 80205-nas428 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.500 inches and 0.562 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.440 inches
Hole Diameter: 0.062 inches
