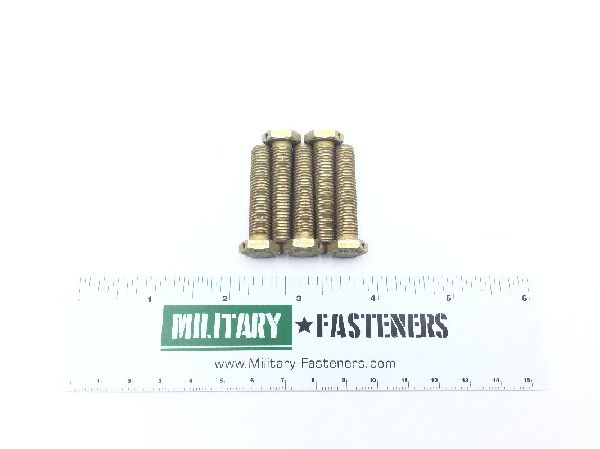

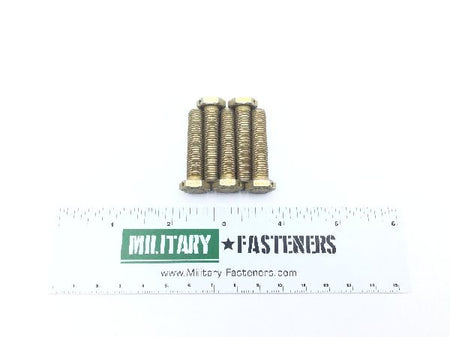

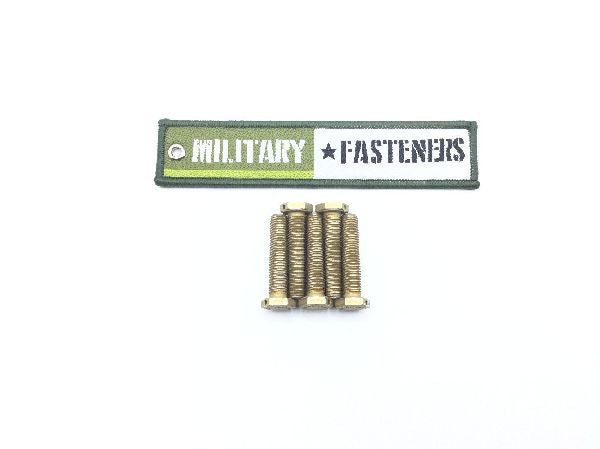

NAS428H5A13 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $11.78

Units per Pack 5

Price per Pack $58.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $58.90

Add item to quote

Head Style

Crowned hexagon

Material

Steel comp

Surface Treatment

type 2 class 3 federal specification all treatment responses qq-p-416

Thread Class

Fastener Length: Between 1.375 inches and 1.437 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.031 inches and 0.062 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: 0.172 inches
Hole Configuration Style: Hexagon flats
Hole Quantity: 1
Hole Type: Drilled
Min. Tensile Strength (psi): 125000 pounds per square inch
Specification Data: 80205-nas428 professional/industrial association standard
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 1.313 inches and 1.406 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.490 inches and 0.502 inches
Hole Diameter: 0.070 inches
