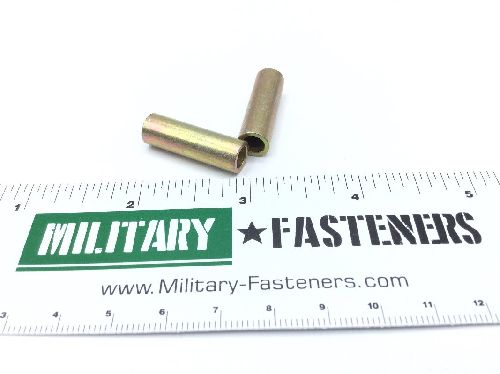

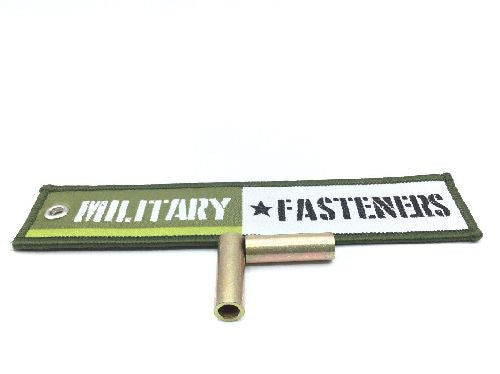

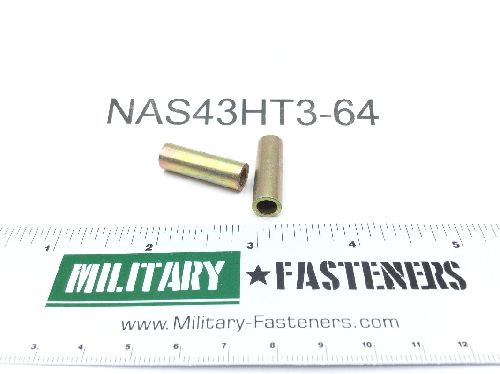

NAS43HT3-64 Sleeve Spacer

Product Series: NAS
ECCN: EAR99
Schedule: 7318.29.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 4130 or steel comp 8630

Overall Length

Between 0.9950 inches and 1.0050 inches

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Body Inside Diameter: Between 0.1940 inches and 0.2340 inches
Body Outside Diameter: Between 0.3020 inches and 0.3220 inches
Corner Shape: Square all corners
Material Specification: Cond ht-125 military specification 2nd material response type 1 cond ht-125 military specification 1st material response or mil-t-6732 type 1 mil-t-6736
Special Features: Color bronze
Specification Data: 80205-nas43 professional/industrial association standard
Style Designator: no outside flanges plain solid
