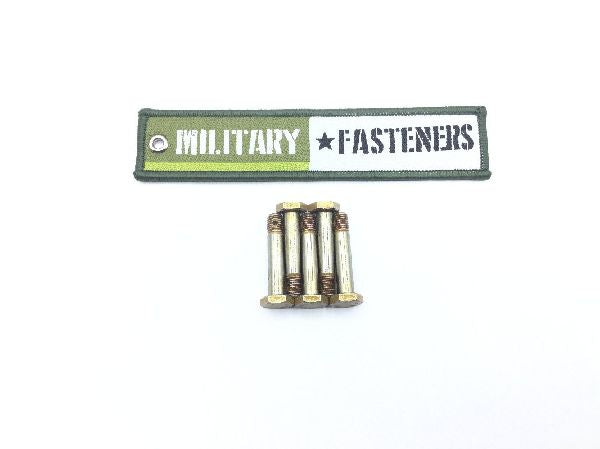

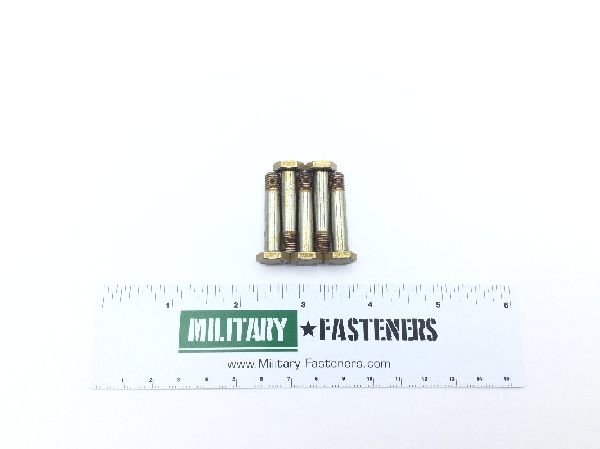

NAS464-4-15 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $8.24

Units per Pack 5

Price per Pack $41.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $41.20

Add item to quote

Head Style

Hexagon

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740 or steel comp 4037

Surface Treatment

Cl 3 federal specification all treatment responses threads type 2 qq-p-416

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 1.126 inches first hole
Fastener Length: 1.281 inches
Grip Diameter: 0.2492 inches
Grip Length: 0.938 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: 0.125 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.076 inches first hole
Single Shear Strength: 4650 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.343 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: 0.438 inches
