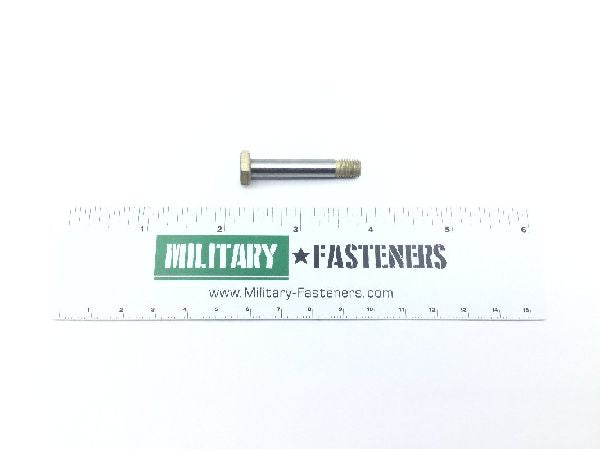

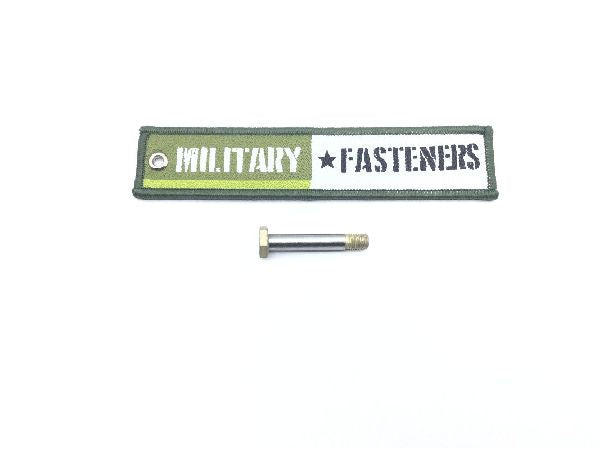

NAS464-4A18 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $30.15

Units per Pack 2

Price per Pack $60.30

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $60.30

Add item to quote

Head Style

Hexagon

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Class 3 federal specification all treatment responses head type 2 qq-p-416

Thread Class

Fastener Length: Between 1.453 inches and 1.500 inches
Grip Diameter: Between 0.2487 inches and 0.2492 inches
Grip Length: 1.125 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.109 inches and 0.141 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Single Shear Strength: 4650 pounds per square inch
Specification Data: 80205-nas464 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.327 inches and 0.374 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.440 inches
