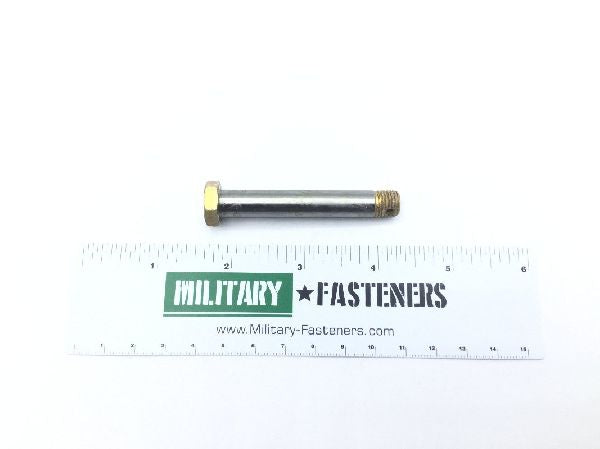

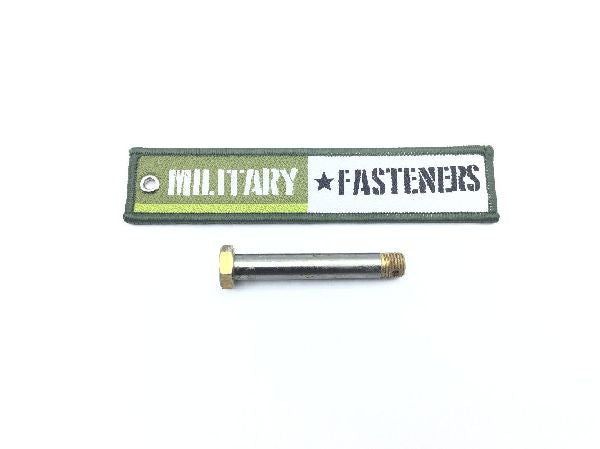

NAS464-6-33 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $42.89

Units per Pack 1

Price per Pack $42.89

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $42.89

Add item to quote

Head Style

Hexagon

Material

Steel comp 4140 or steel comp e4340 or steel comp 8740 or steel comp 8735 or steel comp 6150 or steel comp 4037

Surface Treatment

Cl 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Distance From Head Largest Bearing Surface To Shank Hole Center: 2.281 inches first hole
Fastener Length: Between 2.406 inches and 2.453 inches
Grip Diameter: Between 0.3737 inches and 0.3742 inches
Grip Length: 2.062 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: 0.188 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.106 inches first hole
Single Shear Strength: 10500 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.344 inches and 0.391 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.552 inches and 0.564 inches
