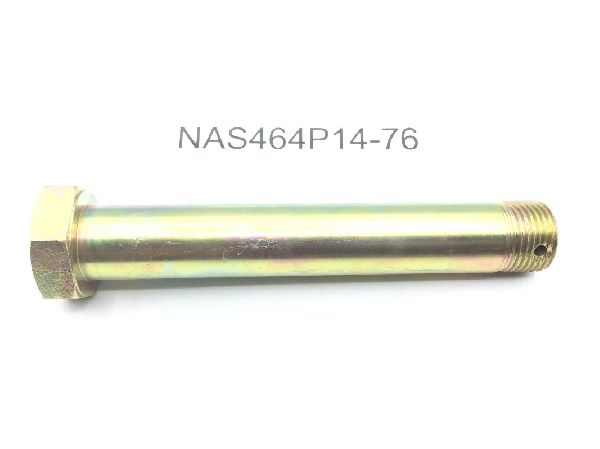

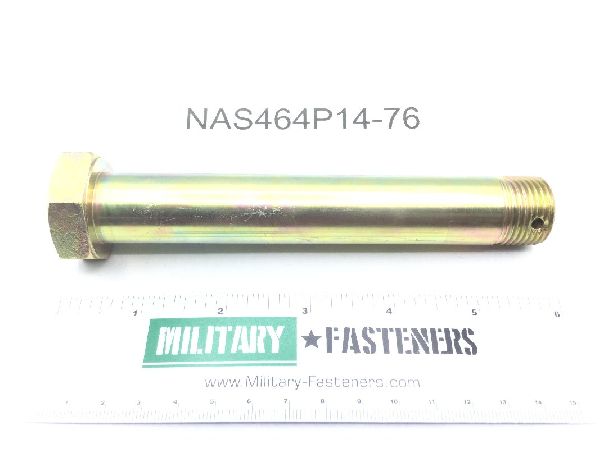

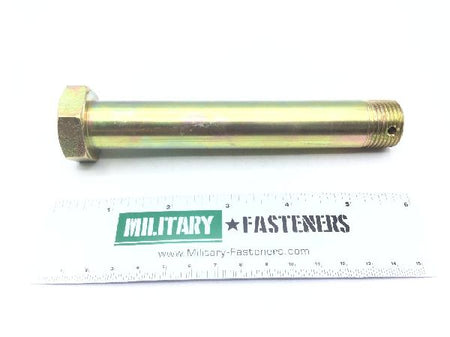

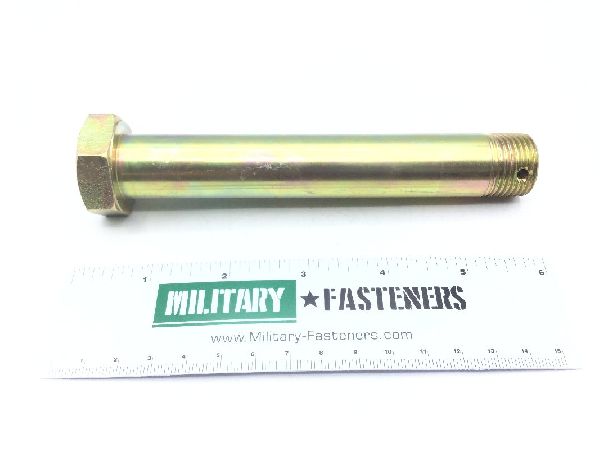

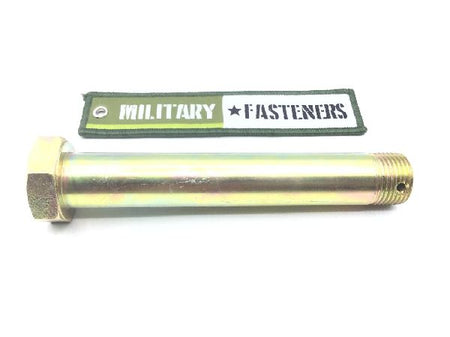

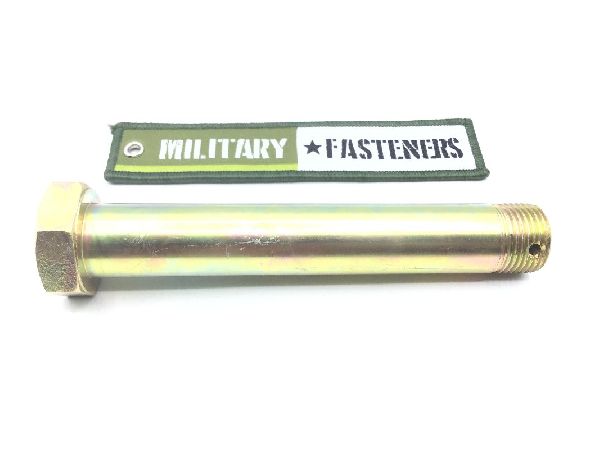

NAS464P14-76 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Class 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Distance From Head Largest Surface To Shank Hole Center: 5.172 inches first hole and 5.204 inches first hole
Fastener Length: Between 5.375 inches and 5.422 inches
Grip Diameter: Between 0.8725 inches and 0.8737 inches
Grip Length: 4.75 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.422 inches and 0.454 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.141 inches first hole
Specification Data: 80205-nas464 professional/industrial association standard
Surface Finish: 32 microinches grip
Thread Diameter: 0.875 inches
Thread Direction: Right-hand
Thread Length: Between 0.625 inches and 0.672 inches
Thread Qty Per Inch (tpi): 14
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 1.240 inches and 1.253 inches
