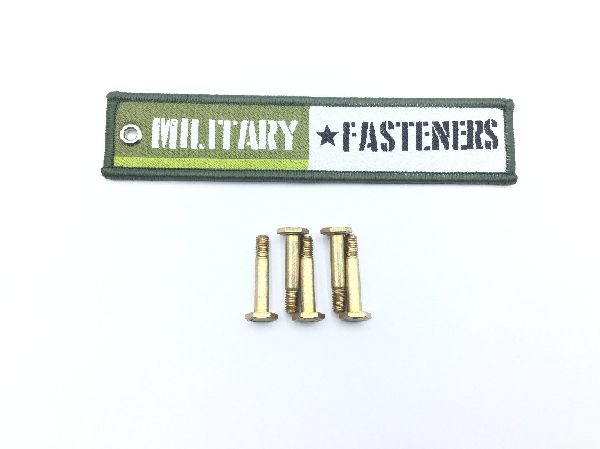

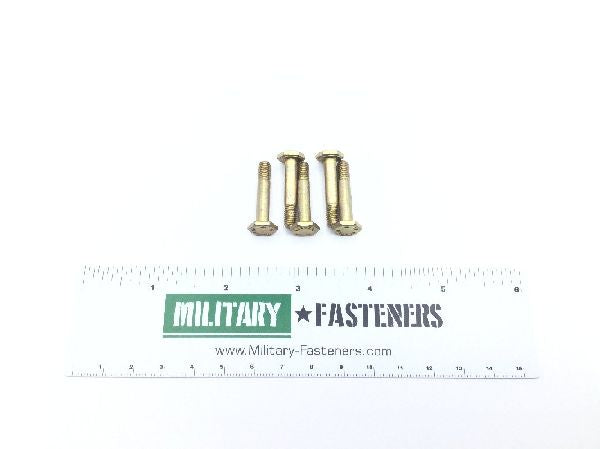

NAS464P3A11 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $2.85

Units per Pack 20

Price per Pack $57.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $57.00

Add item to quote

Head Style

Hexagon

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740 or steel comp 4037

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Fastener Length: 1.031 inches
Grip Diameter: 0.1894 inches
Grip Length: 0.688 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: 0.094 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Single Shear Strength: 2690 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.343 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.375 inches
