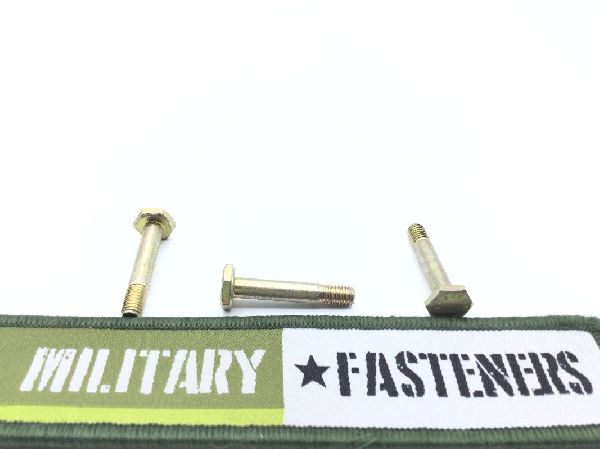

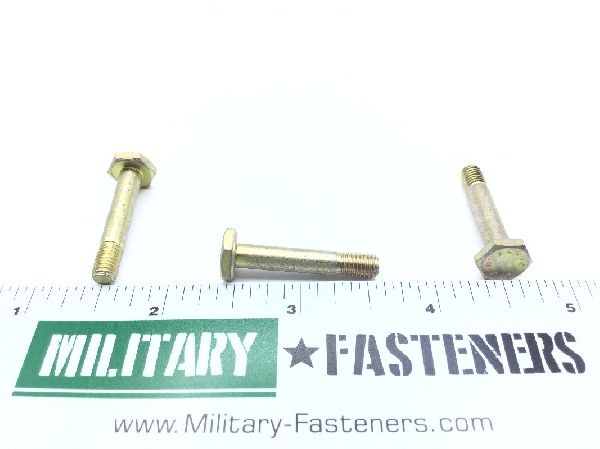

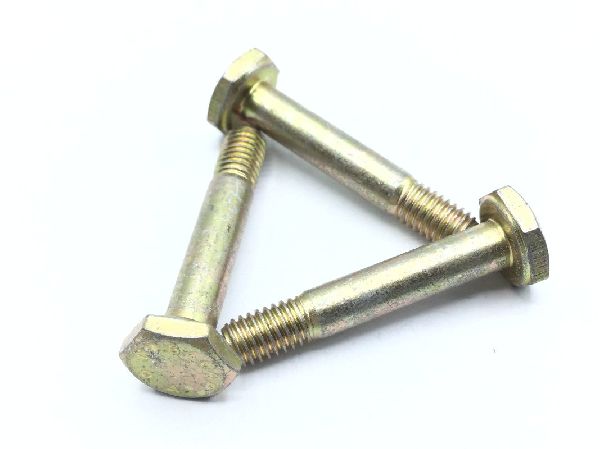

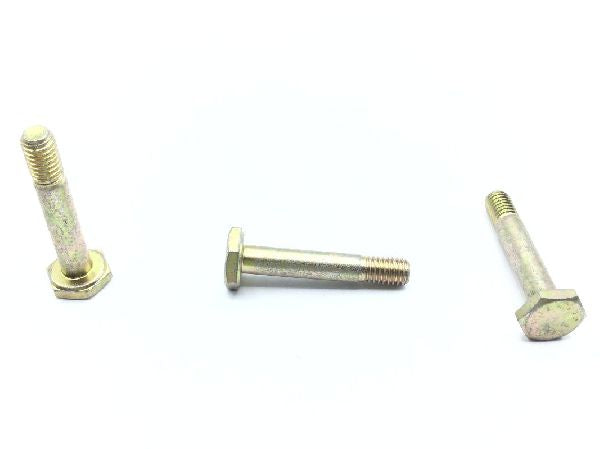

NAS464P3A12 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel comp 4140 or steel comp e4340 or steel comp 8740 or steel comp 8735 or steel comp 6150 or steel comp 4037

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Fastener Length: Between 1.078 inches and 1.125 inches
Grip Diameter: Between 0.1885 inches and 0.1894 inches
Grip Length: 0.750 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: 0.094 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Single Shear Strength: 2690 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.328 inches and 0.375 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.365 inches and 0.377 inches
