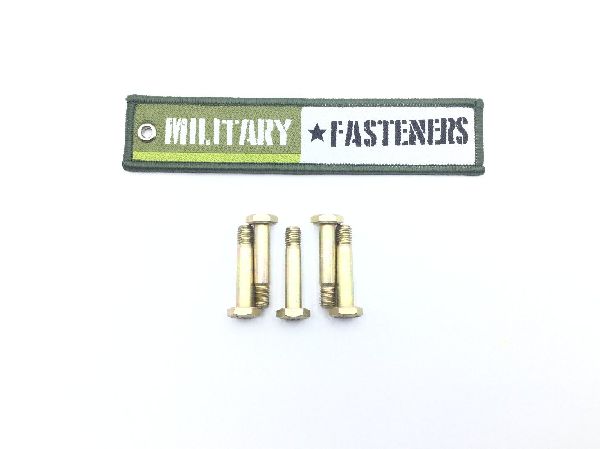

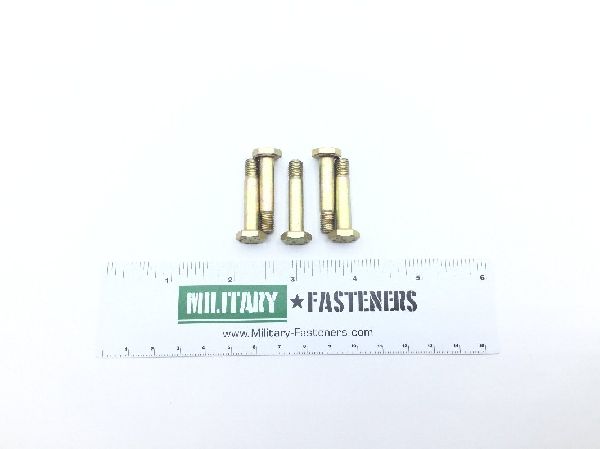

NAS464P4A14 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $2.43

Units per Pack 20

Price per Pack $48.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $48.60

Add item to quote

Head Style

Hexagon

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740 or steel comp 4037

Surface Treatment

Class 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Fastener Length: 1.219 inches
Grip Diameter: 0.2492 inches
Grip Length: 0.875 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: 0.125 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Single Shear Strength: 4650 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.344 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: 0.438 inches
