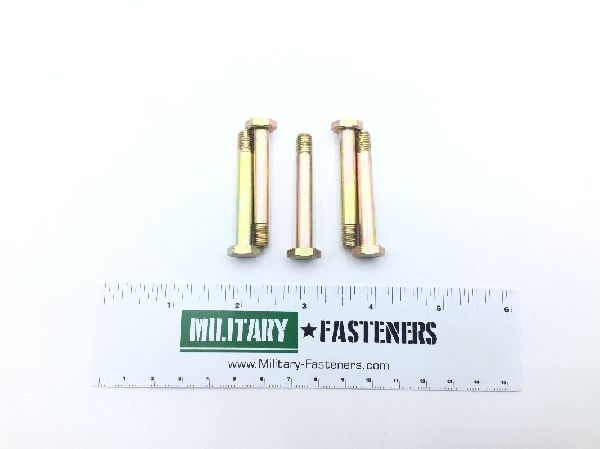

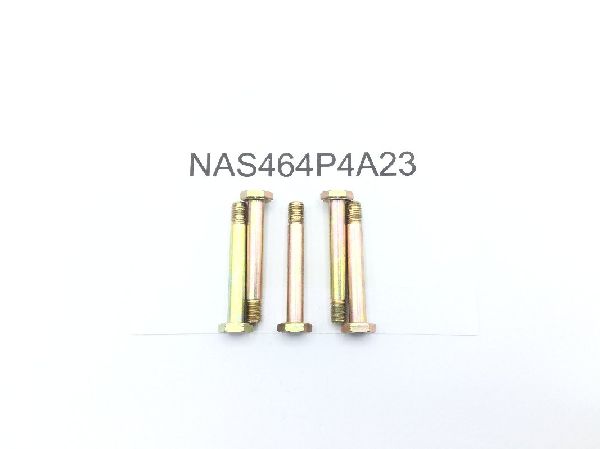

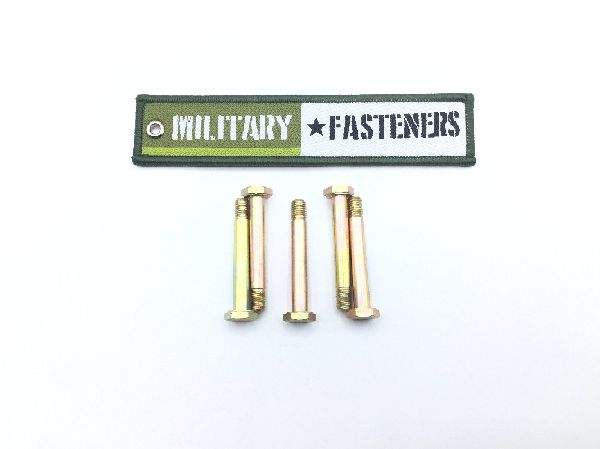

NAS464P4A23 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $11.78

Units per Pack 5

Price per Pack $58.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $58.90

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

type 2 class 3 federal specification all treatment responses qq-p-416

Thread Class

Fastener Length: 1.781 inches
Grip Diameter: 0.2492 inches
Grip Length: 1.438 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: 0.125 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Single Shear Strength: 4650 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.343 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: 0.438 inches
