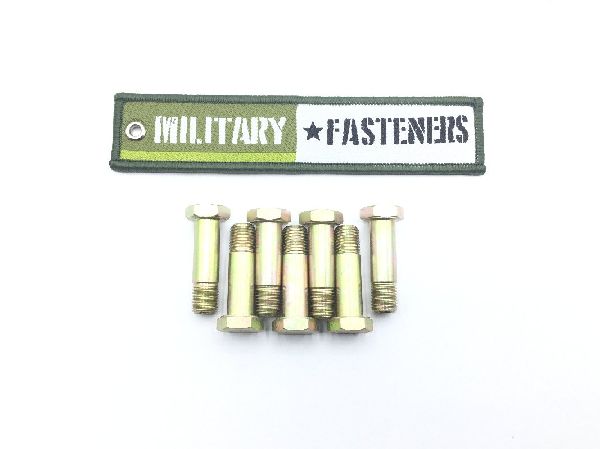

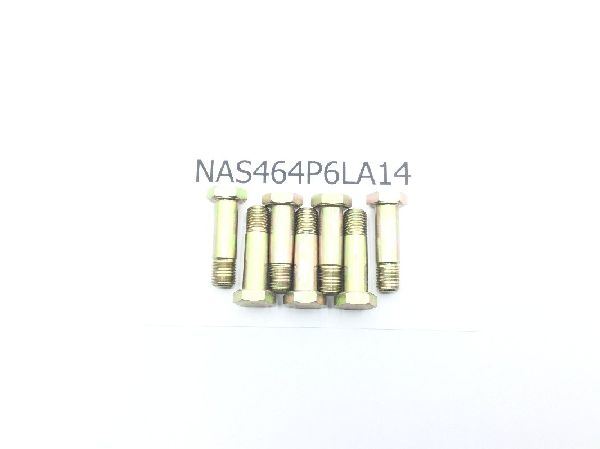

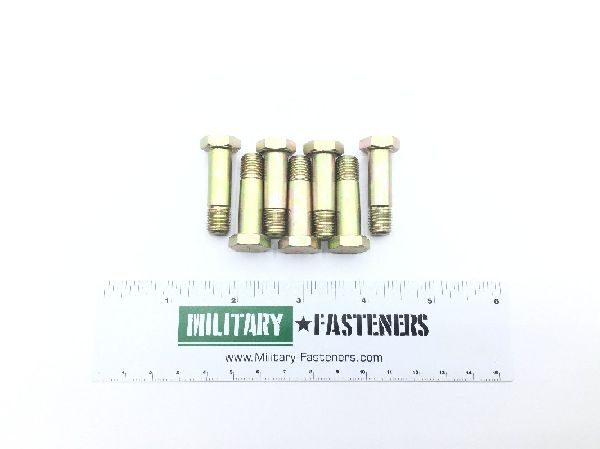

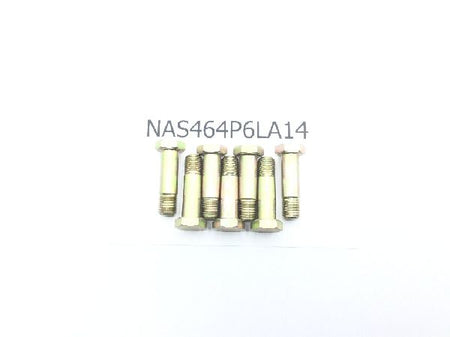

NAS464P6LA14 Machine Bolt

NSN: 5306-00-806-9096
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $11.05

Units per Pack 10

Price per Pack $110.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $110.50

Add item to quote

Head Style

Hexagon

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740 or steel comp 4037

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: 1.312 inches
Grip Diameter: 0.3742 inches
Grip Length: 0.875 inches
Hardness Rating: 36.0 rockwell c and 40.0 rockwell c
Head Height: 0.188 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Single Shear Strength: 10500 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.437 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: 0.562 inches
