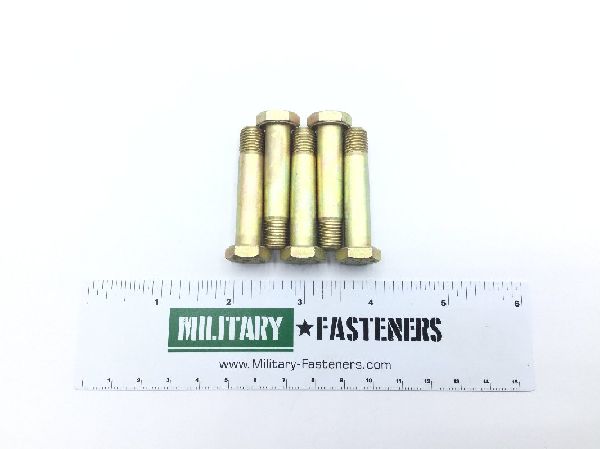

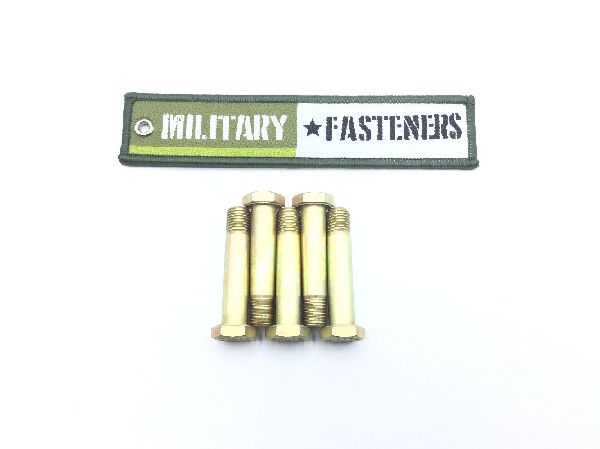

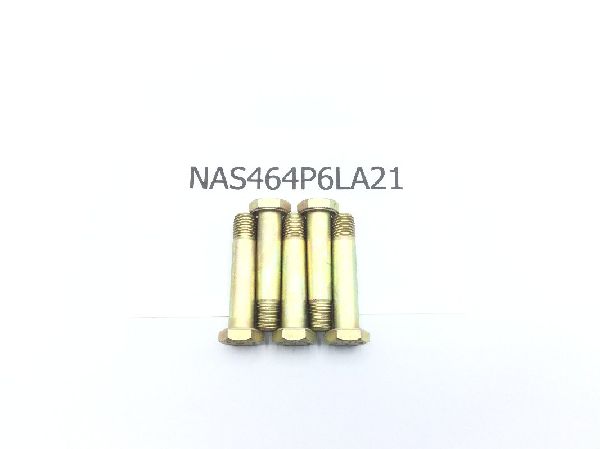

NAS464P6LA21 Machine Bolt

NSN: 5306-00-838-6705
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $22.58

Units per Pack 5

Price per Pack $112.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $112.90

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 class 3 federal specification all treatment responses

Thread Class

Fastener Length: 1.75 inches
Grip Diameter: 0.3742 inches
Grip Length: 1.312 inches
Hardness Rating: 36 rockwell and 40 rockwell
Head Height: 0.188 inches
Min. Tensile Strength (psi): 160000 pounds per square inch
Single Shear Strength: 10500 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.438 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: 0.562 inches
