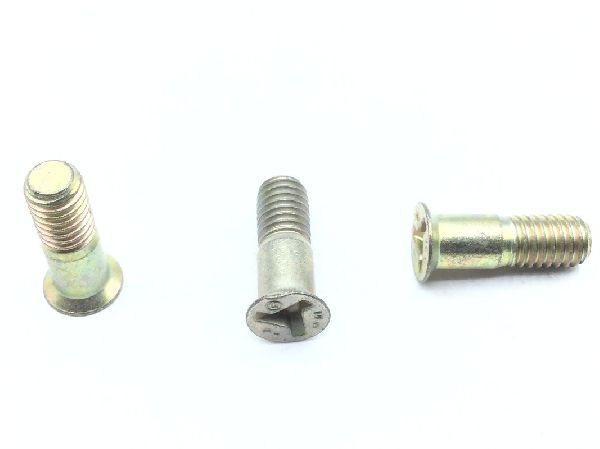

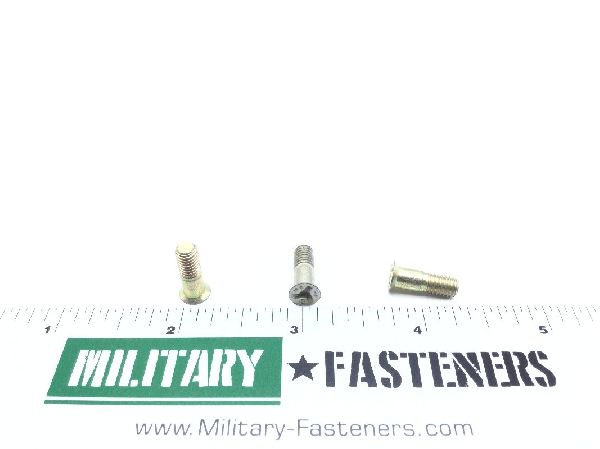

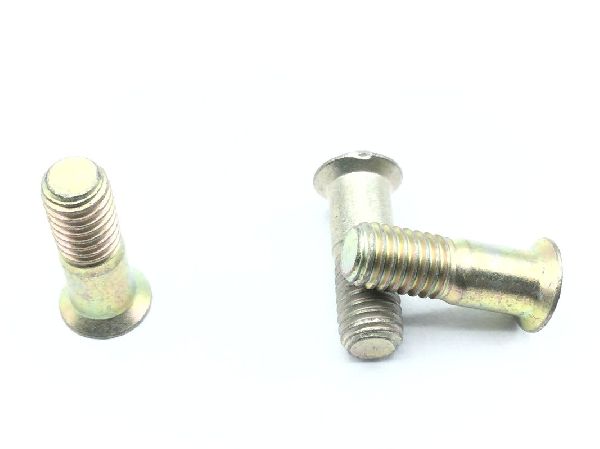

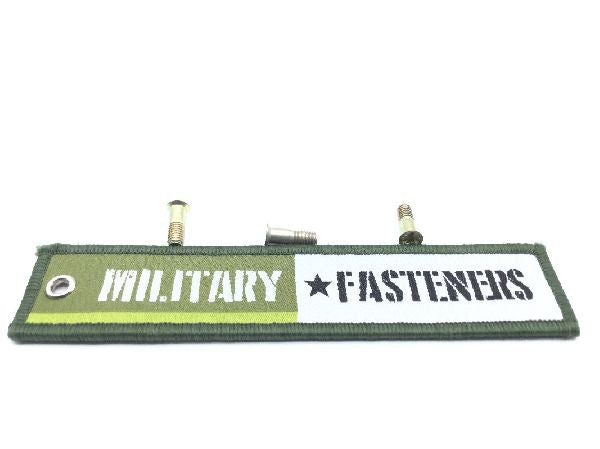

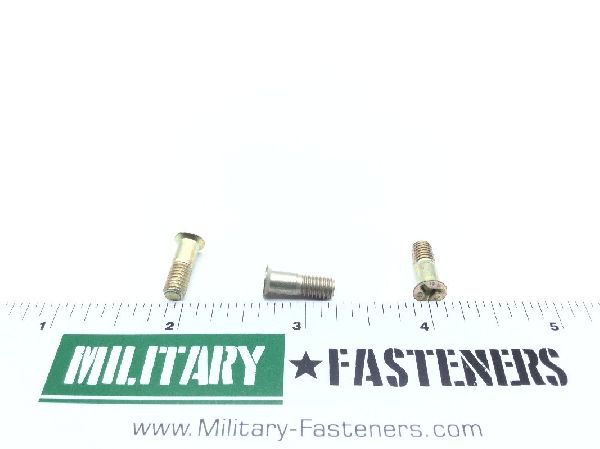

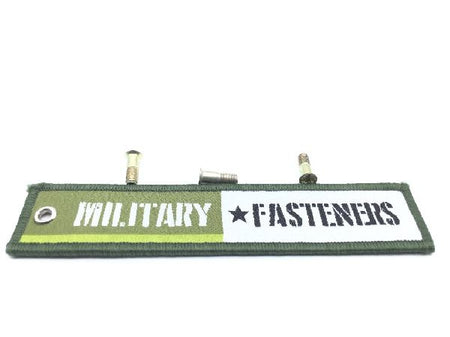

NAS4703-4 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.83

Units per Pack 50

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Head Style

Flat countersunk

Material

Steel comp 4340 or steel comp 8740

Surface Treatment

Qq-p-416 ty2 cl2 federal specification 1st treatment response

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.563 inches and 0.583 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.240 inches and 0.260 inches
Internal Drive Style: Tri-wing recess
Material Specification: Mil-s-5000 military specification 1st material response and mil-s-6049 military specification 2nd material response or ams6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas4703 professional/industrial association standard
Thread Diameter: 0.1900 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.266 inches and 0.303 inches
