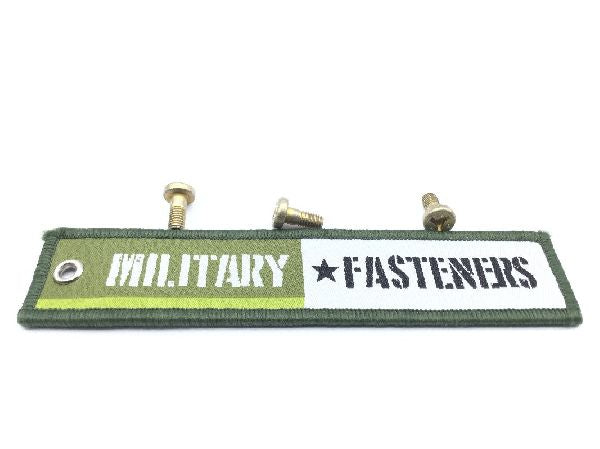

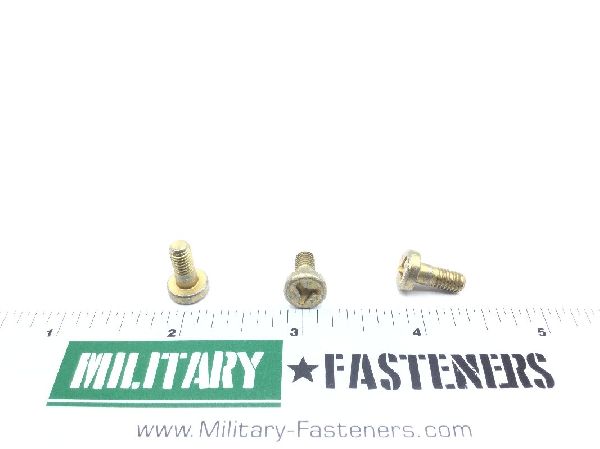

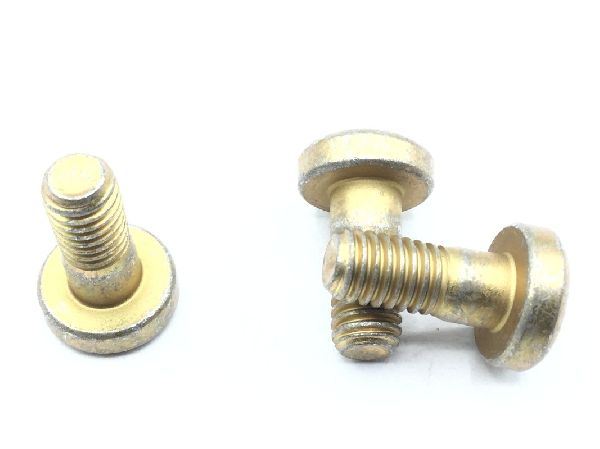

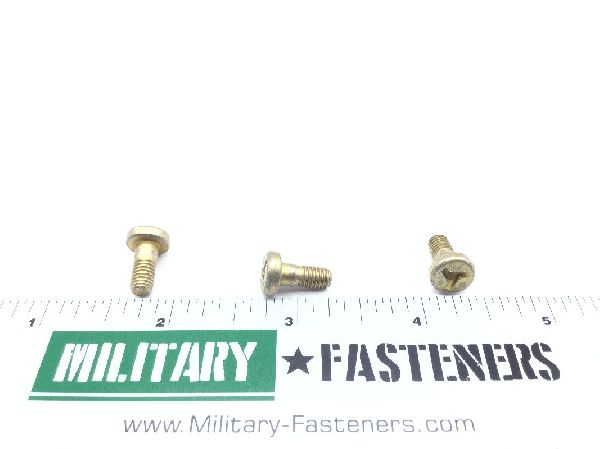

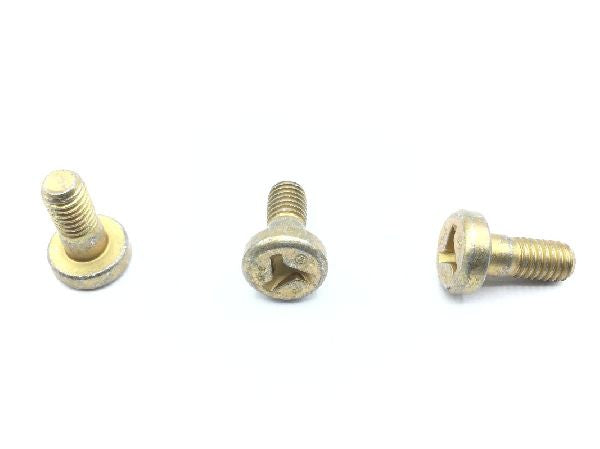

NAS5003-2 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.17

Units per Pack 50

Price per Pack $58.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $58.50

Add item to quote

Head Style

Pan no. 2

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 0.433 inches and 0.463 inches
Grip Diameter: Between 0.1081 inches and 0.1087 inches
Grip Length: Between 0.115 inches and 0.135 inches
Head Height: Between 0.103 inches and 0.108 inches
Internal Drive Style: Tri-wing recess
Min. Tensile Strength (psi): 160000 pounds per square inch
Single Shear Strength: 95000 pounds per square inch
Specification Data: 80205-nas5003 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.367 inches and 0.373 inches
