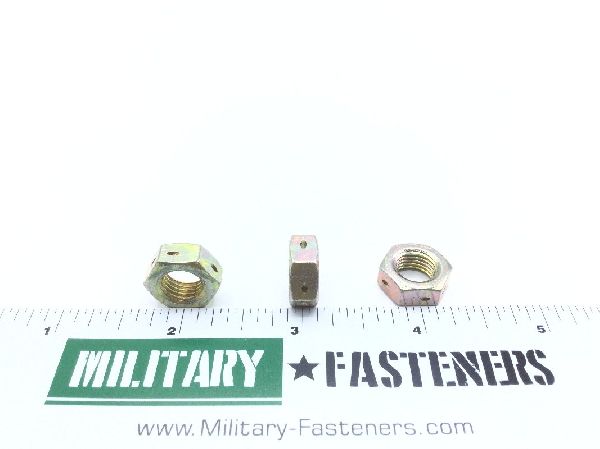

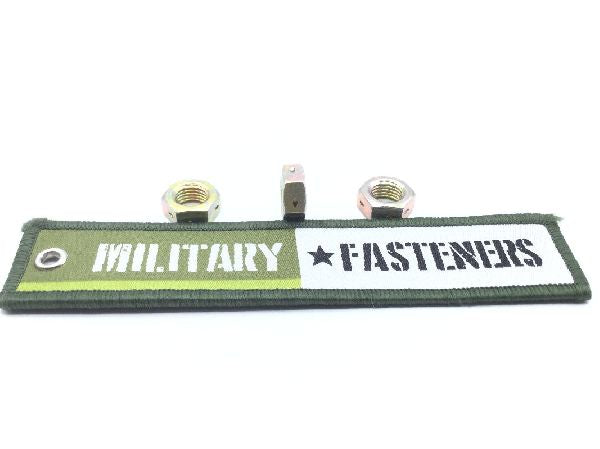

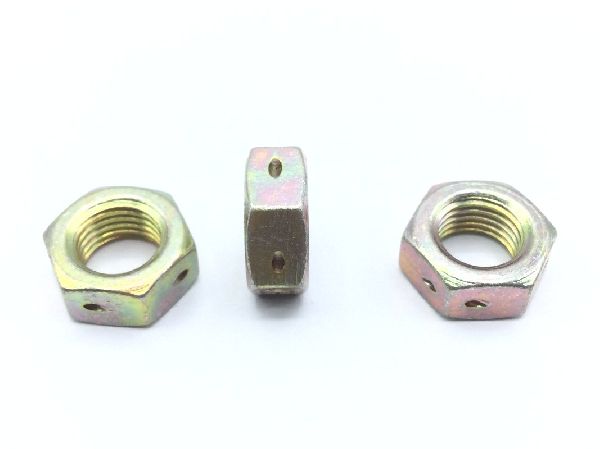

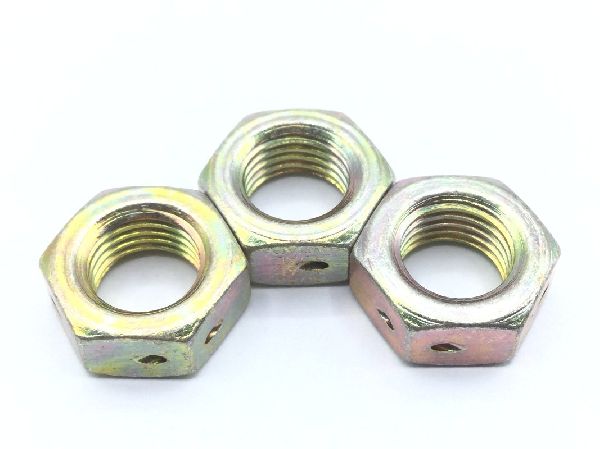

NAS509-6 Plain Hexagon Nut

NSN: 5310-00-208-6740
Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $6.56

Units per Pack 10

Price per Pack $65.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $65.60

Add item to quote

Material

Steel

Surface Treatment

Class federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.375 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered
Countersink Angle: 110.0 degrees both ends
Drilled Hole Diameter: Between 0.045 inches and 0.050 inches
Hardness Rating: Between 34.0 rockwell c and 38.0 rockwell c
Hole Configuration Style: Configuration b
Hole Type And Quantity: 3 drilled
Material Specification: Mil-s-6758 military specification single material response
Nut Height: 0.250 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.553 inches and 0.565 inches
