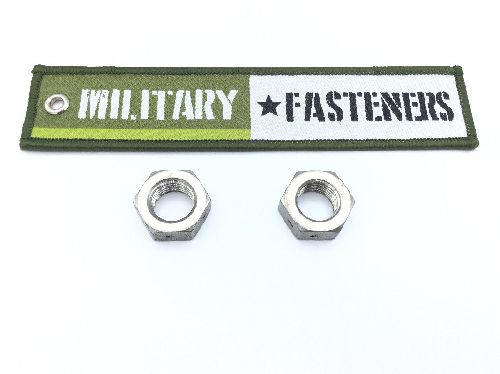

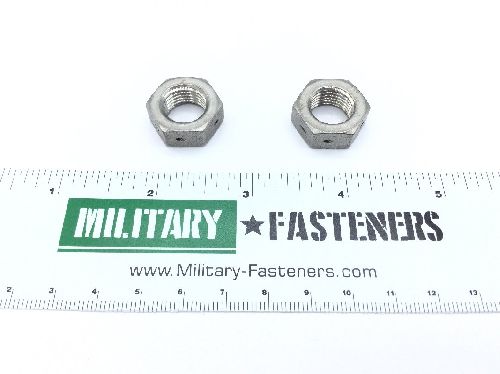

NAS509-8C Plain Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.50 inches

Bearing Surface Finish: 125 microinches
Bearing Surface Type: Chamfered
Countersink Angle: 109 degrees both ends and 111 degrees both ends
Drilled Hole Diameter: Between 0.045 inches and 0.05 inches
Hole Configuration Style: Configuration b
Hole Type And Quantity: 3 drilled
Nut Height: 0.313 inches
Nut Style: Hexagon
Special Features: 150000 psi min tensile strength
Specification Data: 80205-nas509 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.740 inches and 0.752 inches
