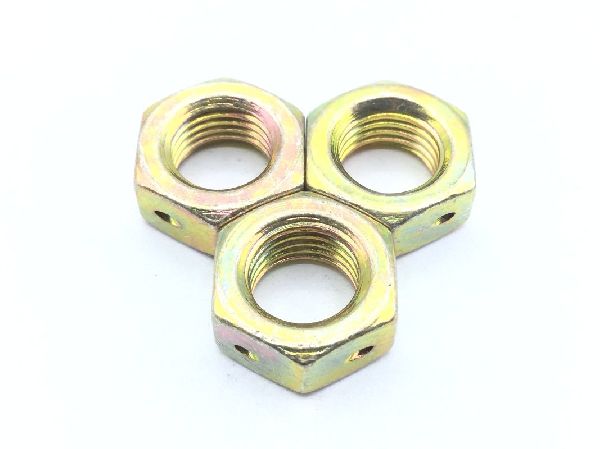

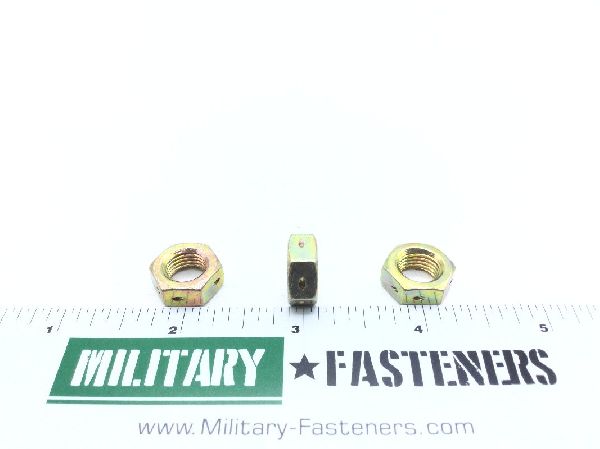

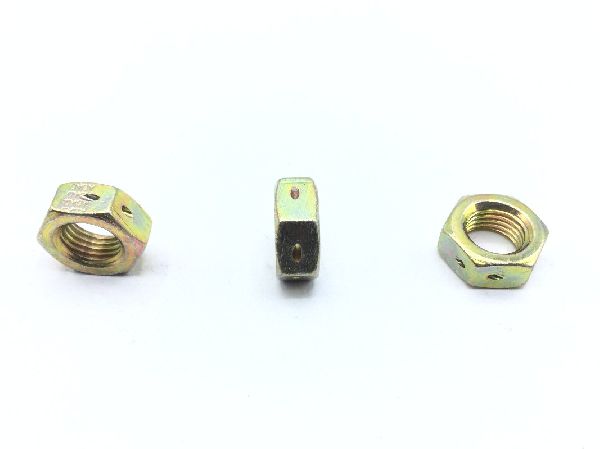

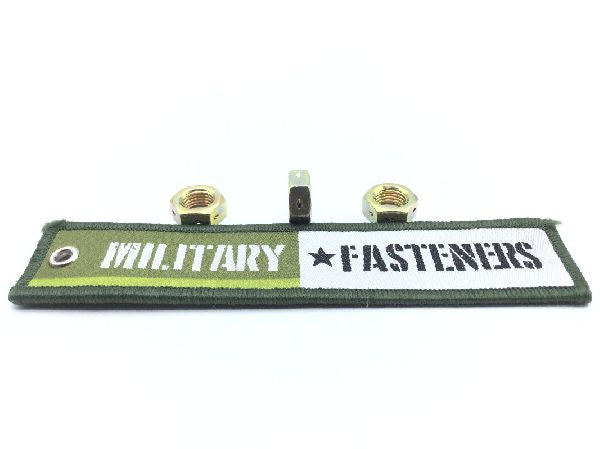

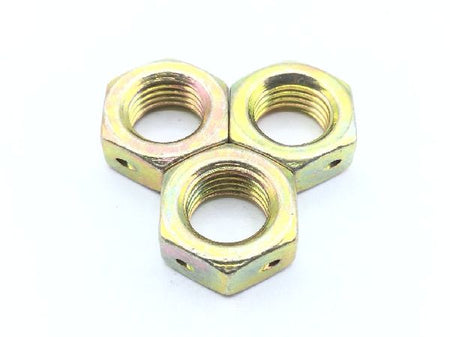

NAS509L6 Plain Hexagon Nut

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered
Countersink Angle: 110.0 degrees both ends
Drilled Hole Diameter: Between 0.045 inches and 0.050 inches
Hardness Rating: Between 34.0 rockwell c and 38.0 rockwell c
Hole Configuration Style: Configuration b
Hole Type And Quantity: 3 drilled
Material Specification: Cond f4 military specification single material response mil-s-6758
Nondefinitive Specification/std Data: 2 type
Nut Height: 0.250 inches
Nut Style: Hexagon
Specification Data: 80205-nas509 professional/industrial association standard
Thread Direction: Left-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.553 inches and 0.565 inches
