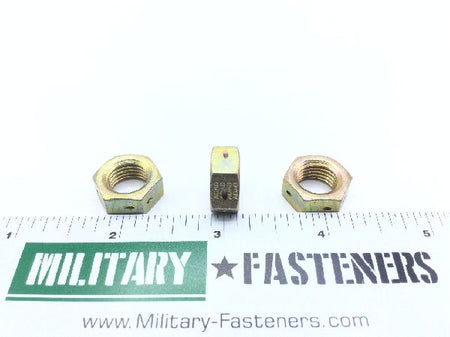

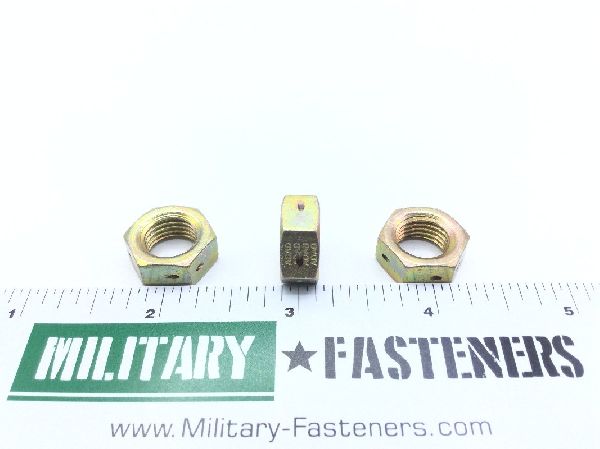

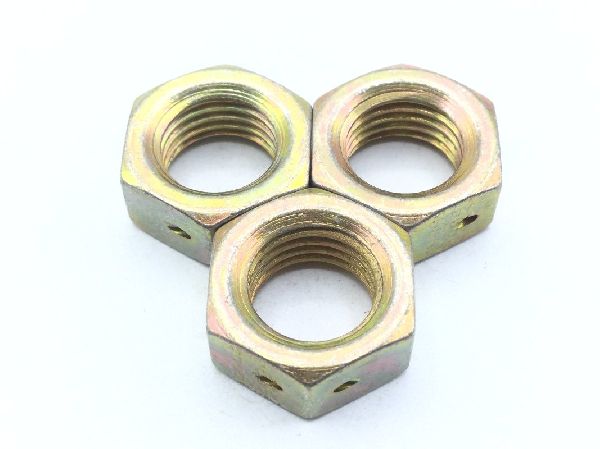

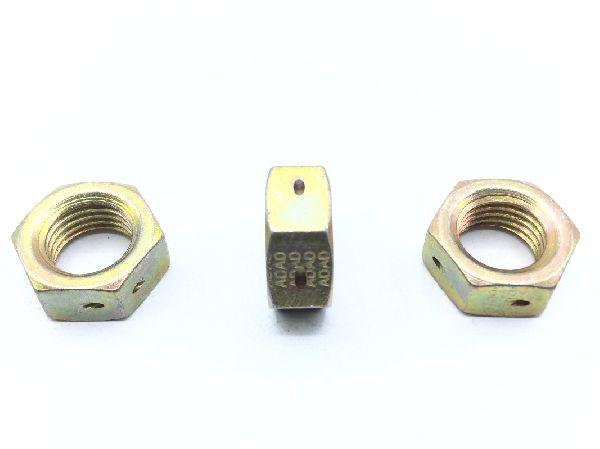

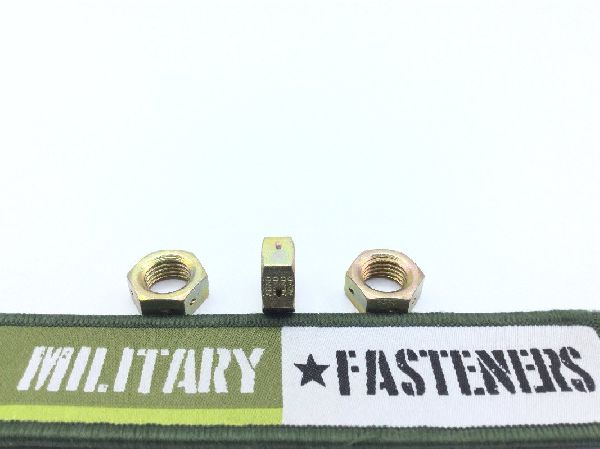

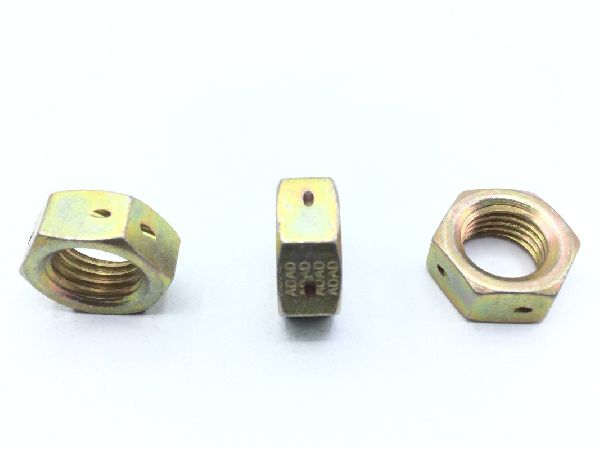

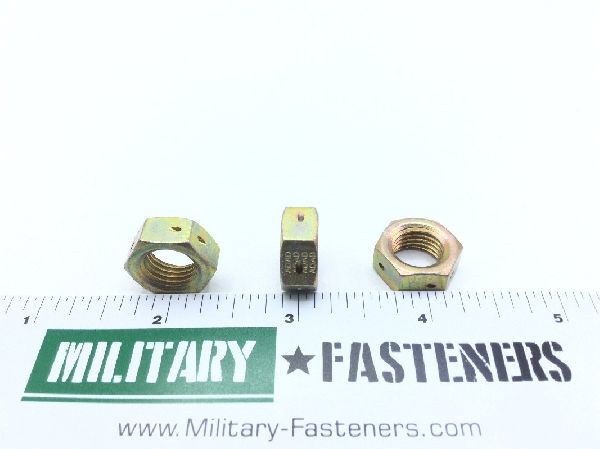

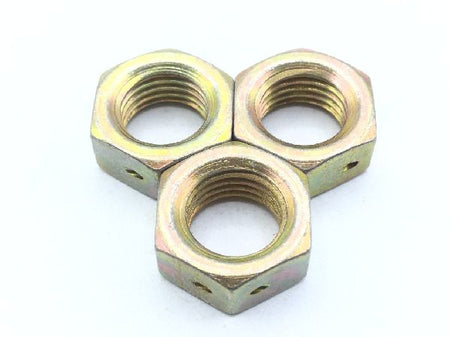

NAS509L7 Plain Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $9.63

Units per Pack 5

Price per Pack $48.15

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $48.15

Add item to quote

Material

Steel comp 4130

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.438 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 110.0 degrees both ends
Drilled Hole Diameter: Between 0.045 inches and 0.050 inches
Hardness Rating: Between 34.0 rockwell c and 38.0 rockwell c
Hole Configuration Style: Configuration b
Hole Type And Quantity: 3 drilled
Material Specification: Cond c4 military specification single material response mil-s-6758
Nut Height: 0.281 inches
Nut Style: Hexagon
Specification Data: 80205-nas509 professional/industrial association standard
Thread Direction: Left-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.615 inches and 0.627 inches
