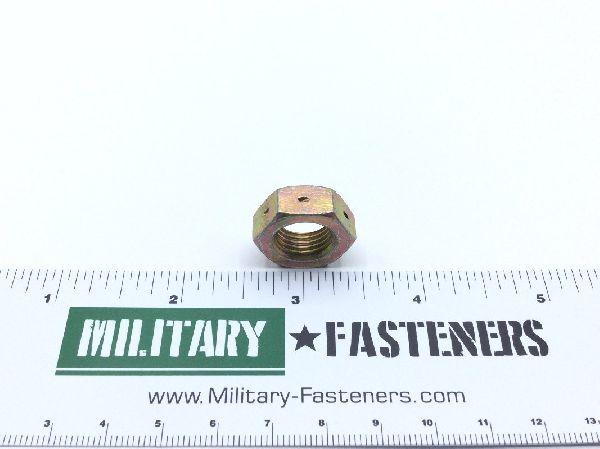

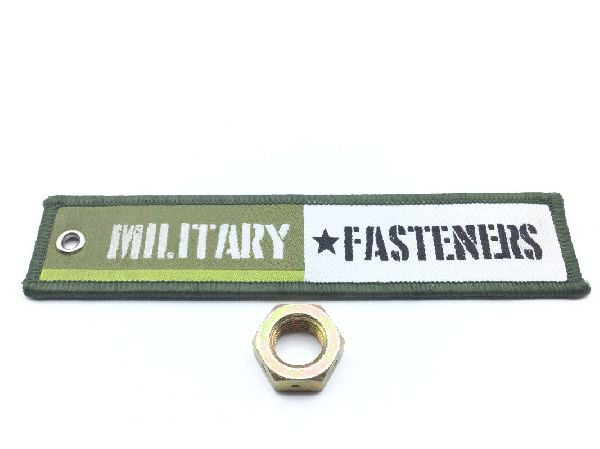

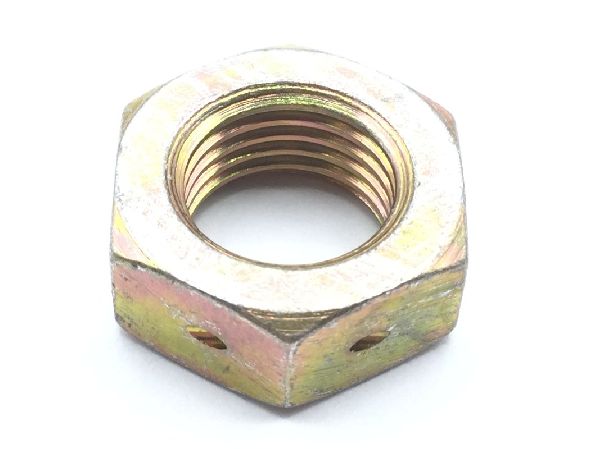

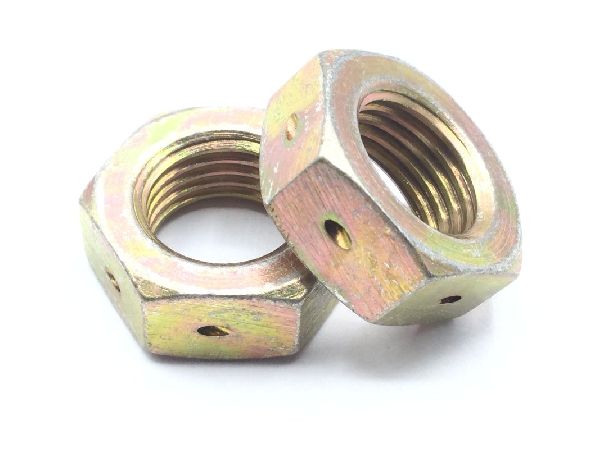

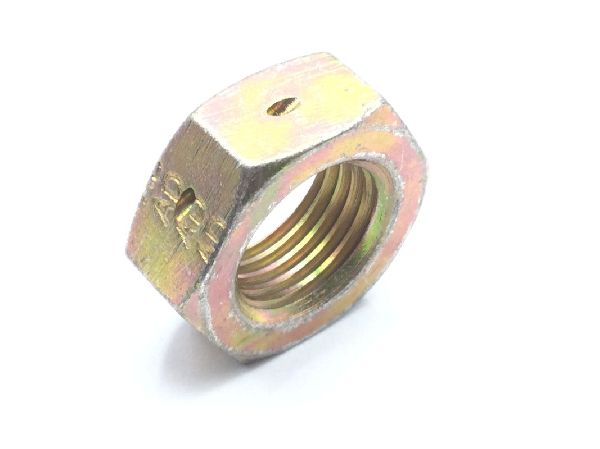

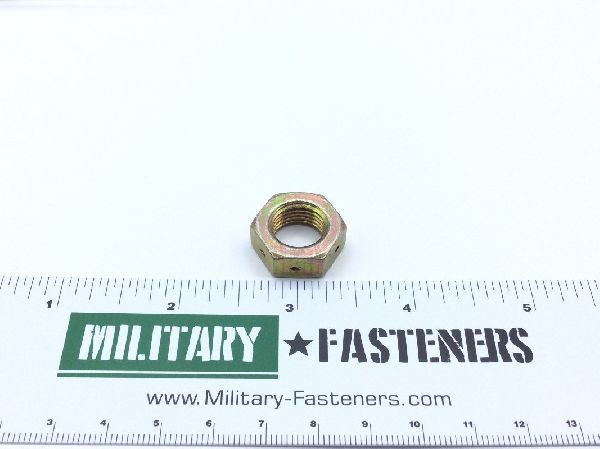

NAS509L8 Plain Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 4130

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.500 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 110.0 degrees both ends
Drilled Hole Diameter: Between 0.045 inches and 0.050 inches
Hardness Rating: Between 34.0 rockwell c and 38.0 rockwell c
Hole Configuration Style: Configuration b
Hole Type And Quantity: 3 drilled
Material Specification: Cond c4 military specification single material response mil-s-6758
Nut Height: 0.313 inches
Nut Style: Hexagon
Thread Direction: Left-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.740 inches and 0.752 inches
