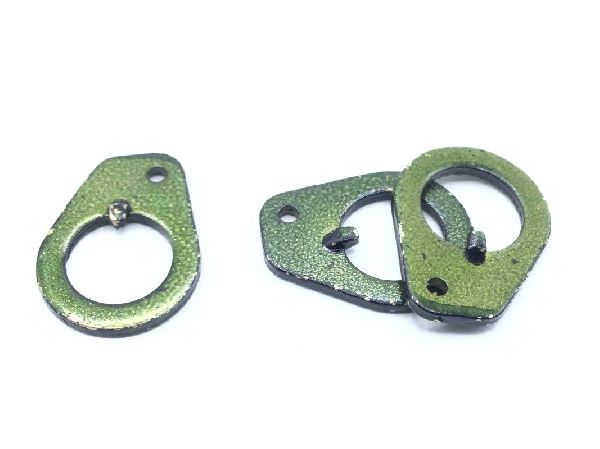

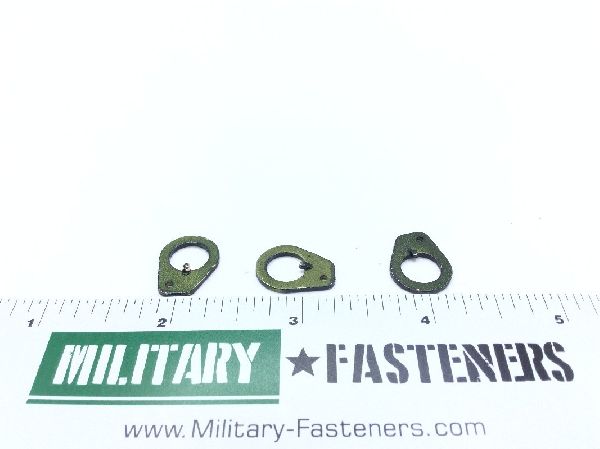

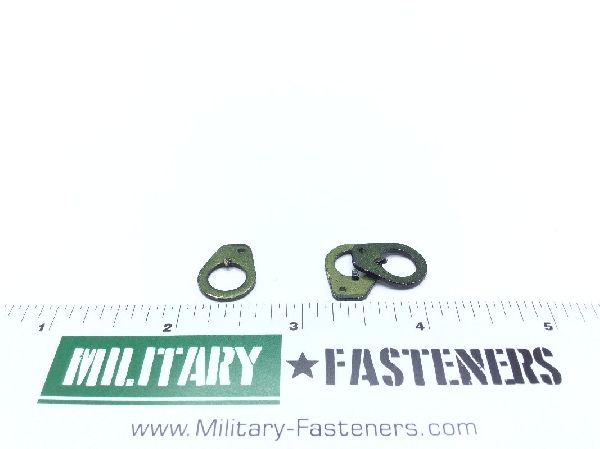

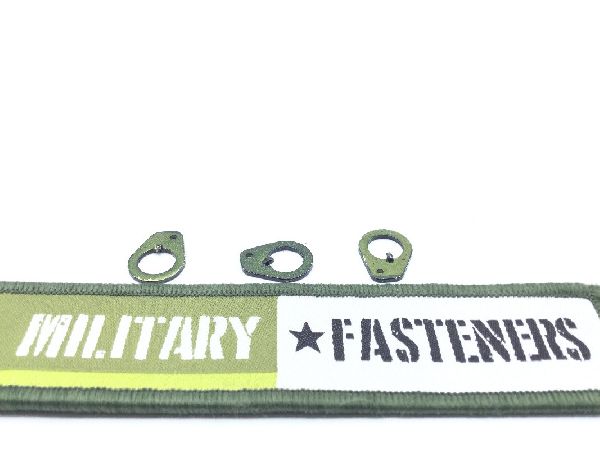

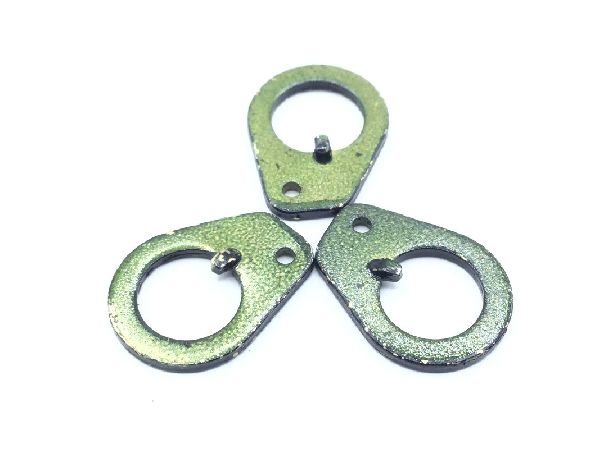

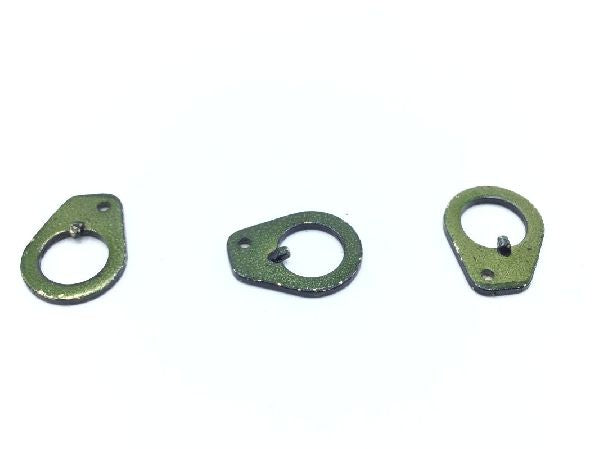

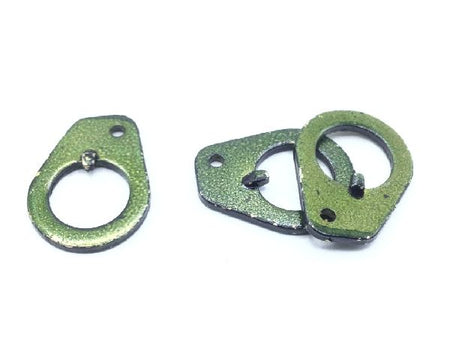

NAS513-5 Key Washer

Product Series: NAS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $3.78

Units per Pack 10

Price per Pack $37.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $37.80

Add item to quote

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Distance From Key Center To Wire Hole Center: Between 0.122 inches and 0.128 inches
Hardness Rating: Between 40.0 rockwell c and 45.0 rockwell c
Internal Prebent Key Width: Between 0.047 inches and 0.057 inches
Material Specification: Mil-s-7947 cond 1 military specification single material response
Material Thickness: 0.050 inches
Min. Tensile Strength (psi): 180000 pounds per square inch
Outside Diameter: Between 0.50 inches and 0.52 inches
Specification Data: 80205-nas513 professional/industrial association standard
Style Designator: Internal prebent key
Wire Hole Diameter: 0.062 inches
Hole Diameter: Between 0.329 inches and 0.339 inches
