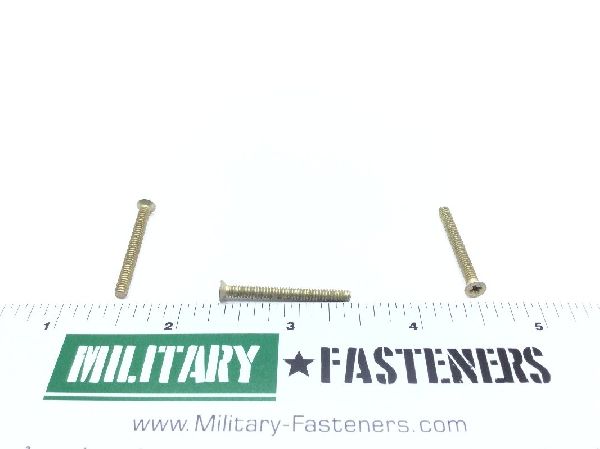

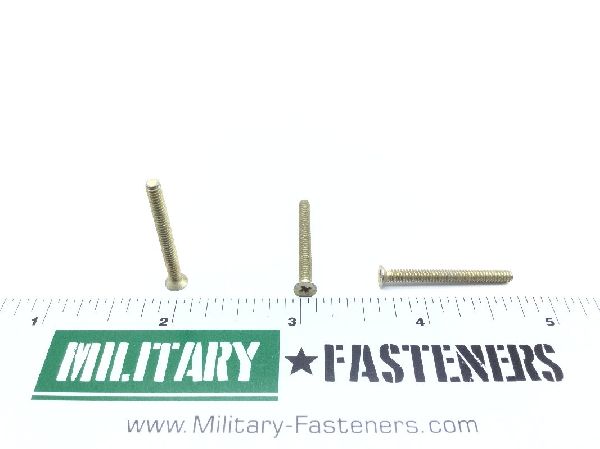

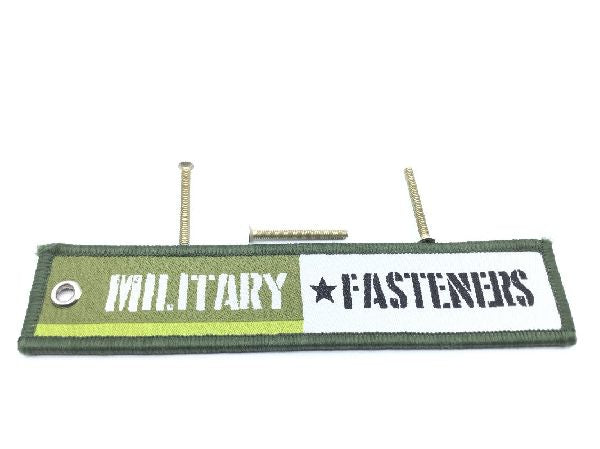

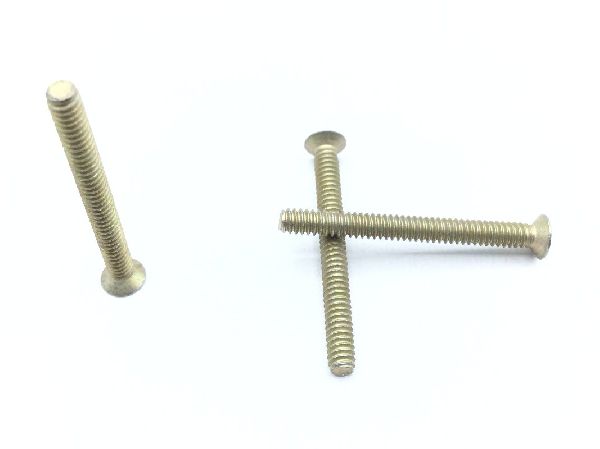

NAS514P440-18P Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.35

Units per Pack 100

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Head Style

Flat countersunk

Material

Steel comp

Surface Treatment

Type 2 class 2 federal specification all treatment responses qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 1.063 inches and 1.125 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-6050 military specification 1st material response or ams 6300 assn standard 2nd material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Specification Data: 80205-nas514 professional/industrial association standard
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.968 inches and 1.080 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unjc
Head Diameter: Between 0.183 inches and 0.225 inches
