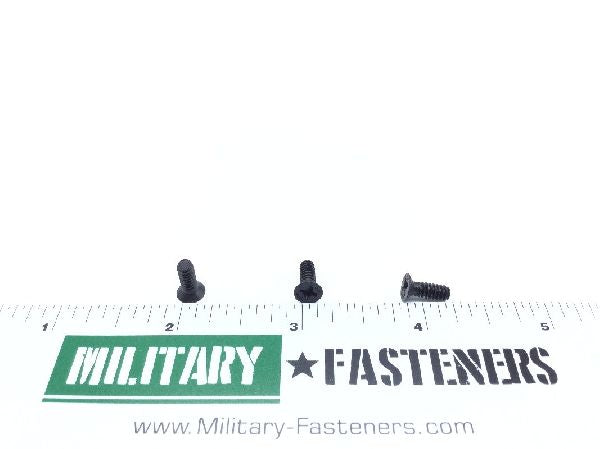

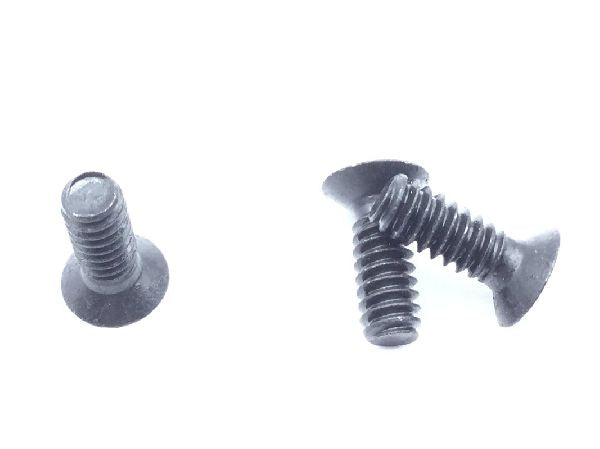

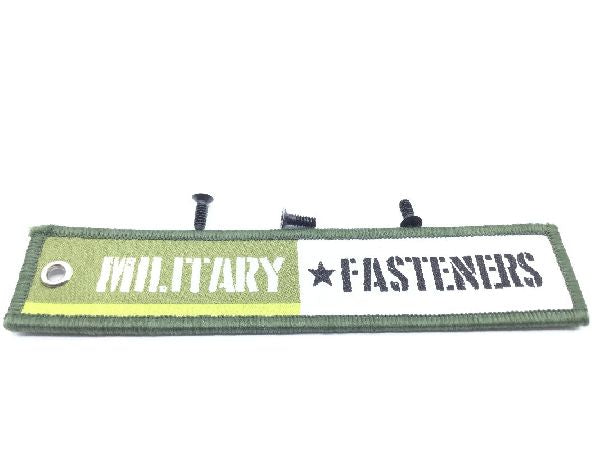

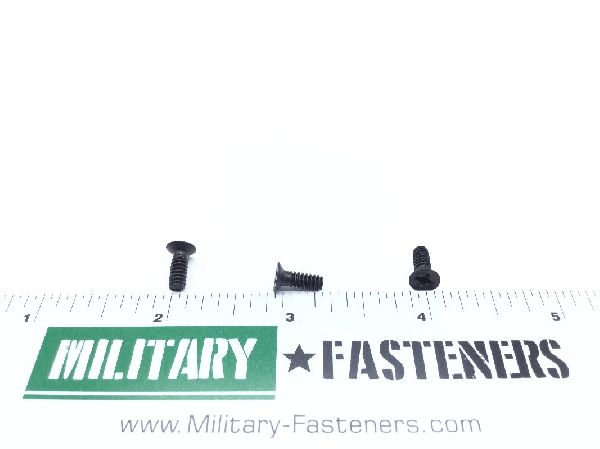

NAS514P632-6B Machine Screw
- Product Series
- NAS
- ECCN
- EAR99
- Schedule
- 7318.15.2091
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Countersink Angle
- Between 99.0 degrees and 101.0 degrees
- Fastener Length
- 0.375 inches
- Hardness Rating
- Between 26.0 rockwell c and 32.0 rockwell c
- Internal Drive Style
- Cross recess type 1
- Min. Tensile Strength (psi)
- 125000 pounds per square inch
- Screw Material
- Steel comp 8630
- Screw Material Specification
- Mil-s-6050 military specification single material response or an-s-9 military standard single material response
- Screw Surface Treatment
- Cadmium and chromate
- Screw Surface Treatment Specification
- Qq-p-416 type 2 cl 3 federal specification all treatment responses
- Special Features
- Chromate dip under pac sftt to be black in lieu of yellow
- Thread Diameter
- 0.138 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.313 inches and 0.375 inches
- Thread Qty Per Inch (tpi)
- 32
- Thread Series Designator
- Unc (coarse thread)
- Head Diameter
- Between 0.233 inches and 0.279 inches
