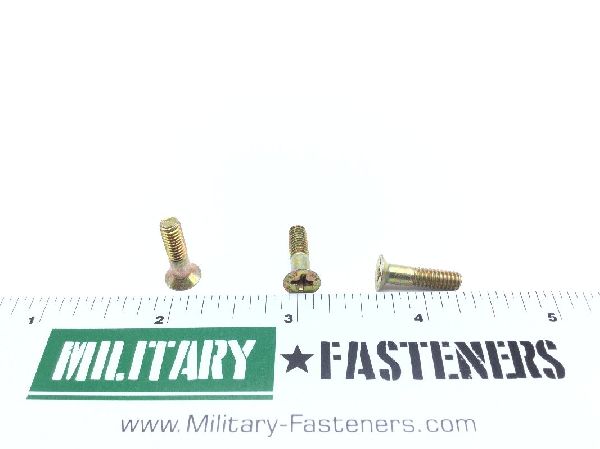

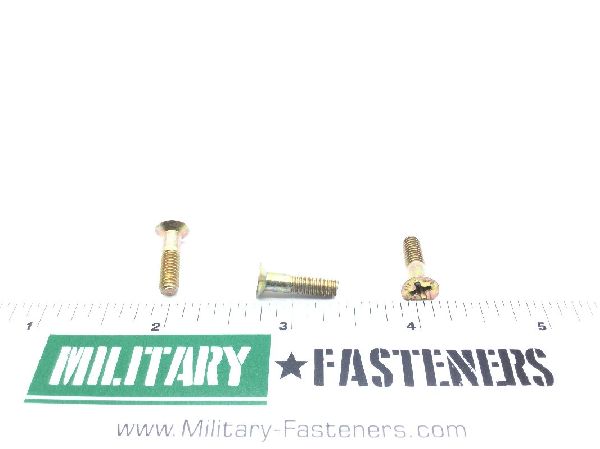

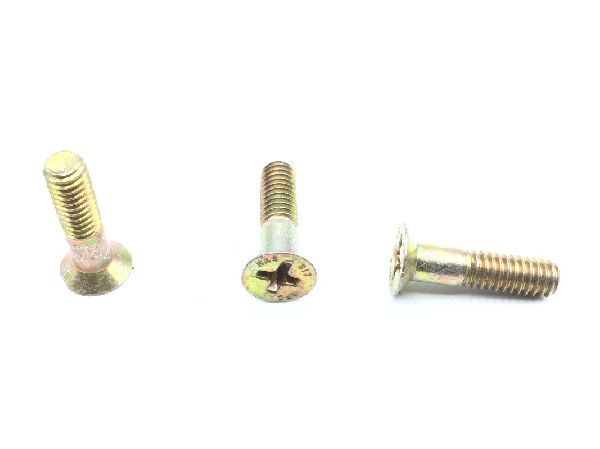

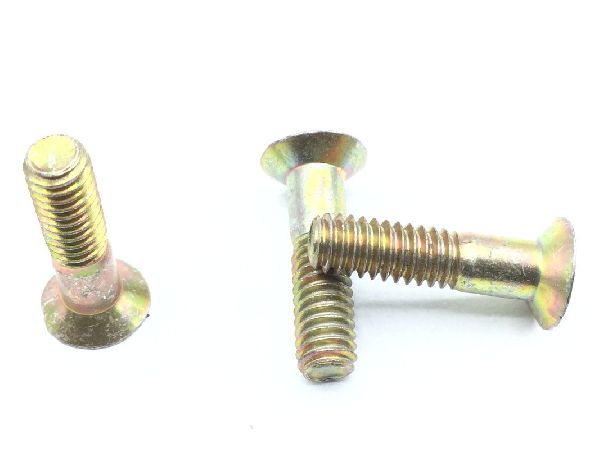

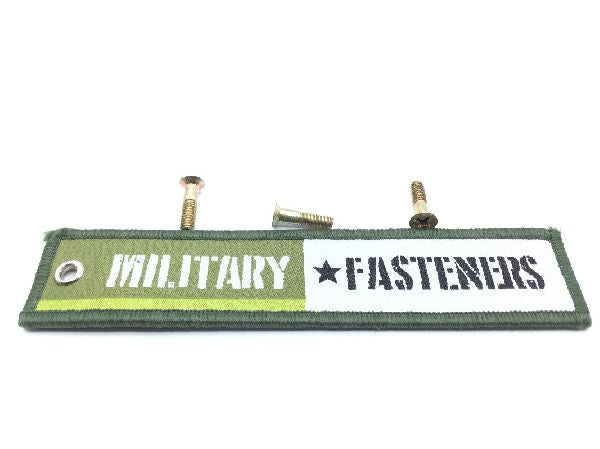

NAS517-2-4 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.37

Units per Pack 100

Price per Pack $37.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $37.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.641 inches and 0.686 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160 pounds per square inch
Screw Material: Steel comp 8630
Screw Material Specification: Mil-s-6050 military specification single material response or an-s-9 military standard single material response
Screw Surface Treatment Specification: Qq-p-416 type 2 cl 2 federal specification single treatment response
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.344 inches and 0.421 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.287 inches and 0.334 inches
